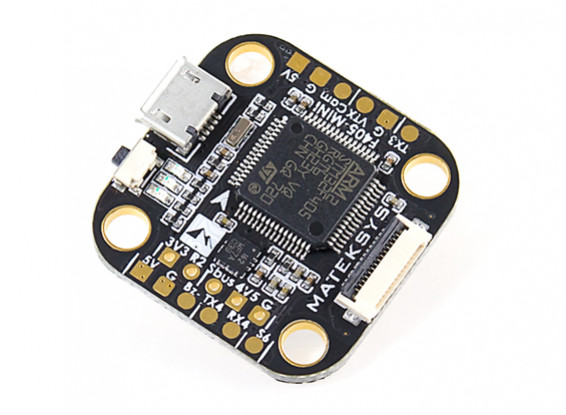

Matek F405 Mini BetaFlight Flight Controller for Mini Racing Drones
Matek F405 Mini BetaFlight Flight Controller for Mini Racing Drones
This tiny board is packed with features, amongst them are a 32K gyro, 32M blackbox and BetaFlight OSD which makes this perfect for mini quad racers. It has been designed and built with high performance in mind, bringing the Max 32K gyro update and the 16K LID loop frequency into play.
This FC is the perfect partner for the Matek FCHUB-A5 and these can be connected together with a ribbon cable for a neat, clean build. Whilst other flight controllers cannot keep up with technology the F405 with OSD can, it is one of the leading controllers available at this time in the world.
Features:
• 2 LED's for status (blue/red)
• 6 PWM/Dshot outputs without conflict
• 5 x UART's
• 4 pairs of corner pads for ESC/GND connections (DSHOT compatible)
• Side button for BOOT (DFU) mode
• 14 pin top mounted FFC slot for FCHUB-A5 connection
• Group of G/S1/S2/S3/S4 pads for 4in1 ESC signal/GND
• BetaFlight GitHub
• BetaFlight FW releases
• 12C1 SDA and SCL available
Specs:
MCU: 168MHz STM32F405
IMU: 32K ICM20602 accelerometer/gyro (SPI)
Support: 32K gyro update and 16K PID loop
OSD: BetaFlight OSD with AT7456E chip
Blackbox: MicroSD card (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5, built in inverter for SBUS input (UART2 Rx)
PPM/UART: UART2-Rx support SoftSerial on S5 and S6
Battery Voltage Sensor: 1:10
BEC 5V: No (FCHUB-A5 option)
Current Sensor: No (FCHUB-A5 option)
LDO 3.3V: Max 300mA for Spektrum Rx
WS2812 Led Strip: Yes
Beeper: Yes
RSSI: Yes
Dimensions: 28 x 28mm
Mounting Holes: 20 x 20mm
Weight: 4.5g
Included:
1 x Matek F405 Mini flight controller
2 x 0.5mm x 14 pin 5cm flexible flat cable
4 x M3 anti-vibration stand offs
Note: User manuals available under the "Files" tab.
