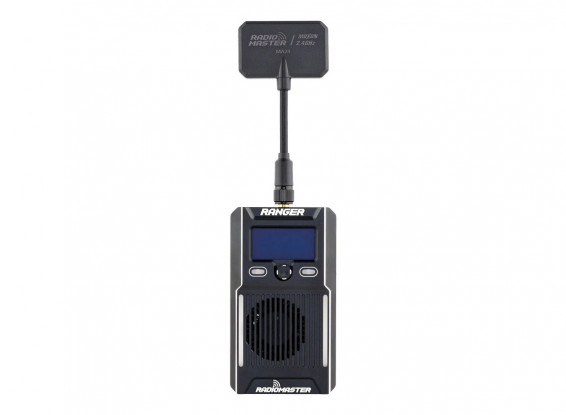

RADIOMASTER Ranger 2.4GHz ELRS FCC TX Module w/OLED Display
RADIOMASTER Ranger 2.4GHz ELRS FCC TX Module w/OLED Display
The RadioMaster Ranger is the pinnacle of ExpressLRS module design, it is not only built to last but looks great as well. It has a rugged CNC machined aluminum case that aids the high-efficiency cooling system as a heat sink. Other features are a state-of-the-art high-contrast OLED display, a directional menu key, and two assignable shortcut keys, this makes the Ranger easily adjustable while flying. The Ranger ELRS module is up to any task and provides all the necessary power and functionality.
A T Antenna for general use and a RADIOMASTER Moxon antenna for long-range directional applications are included. A micro module and nano module adapter are included to ensure the Ranger is compatible with most radios today. A cable has also been included for use with Futaba radios that are CRSF capable.
The Ranger module is available in either an FCC version or a European LBT version, please check the specifications below for the supported protocol.
Features:
• Includes the revolutionary ExpressLRS system
• High-contrast OLED Display
• Rugged CNC housing and high-efficiency cooling system
• 5 Direction Nav keys and 2 customizable shortcut buttons
• Awesome RGB lighting effects
• Packet rates up to a max of F-1000Hz
• Wifi and Bluetooth support plus a built-in accelerometer
Specs:
Type: RADIOMASTER Ranger 2.4GHz ELRS FCC TX Module w/OLED Display
Frequency Range: 2400~2480 MHz
Compliant Protocol: FCC
RF Output Power: Default 100mW
Maximum Packet Rate: 500Hz/F-1000Hz (F-1000Hz requires EgdeTX 2.7.1 or later)
Minimum Receiver Refresh Rate: 25Hz
Regulatory Domain: ISM2400
MCU: ESP32 (main) / ESP8285 (auxiliary as ESP backpack)
RF Chip: SX1281IMLTRT
Module Bay Adapters: JR standard 5-pin socket & Nano standard 8-pin socket
Futaba CRSF Socket Cable: Included
OLED Display Screen: 64x128 pixel
Wifi/Bluetooth Support: Yes
3-Axis Accelerometer: STK8BA58 MEMS accelerometer
Lights: Built-in RGB light strip
Power Supply Voltage: 6V~16.8V DC
Power Supply Connector: XT30
Weight: 138g (with Moxon antenna)/135g (with T antenna)/126g (without antenna)
Dimension: 95x51x25mm (without antenna)
Includes:
1 x RADIOMASTER Ranger 2.4GHz ELRS FCC TX Module
1 x Futaba CRSF socket cable
1 x JR adapter
1 x Nano adapter
1 x T antenna
1 x Moxon antenna
1 x Hex socket screwdriver
3 x M2.5 screws
1 x User Manual
Please note: A copy of the user manual is available under the "Manuals/Files" tab.
