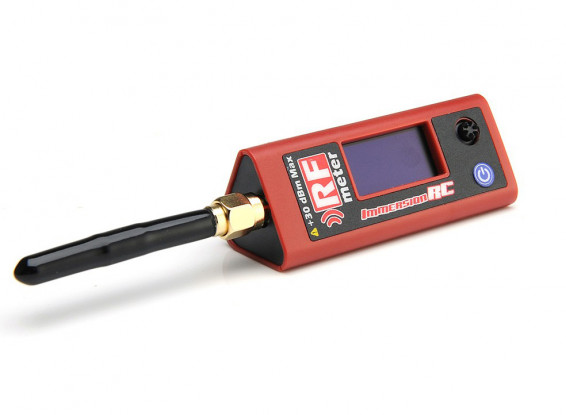

ImmersionRC RF Power Meter v2

The ImmersionRC RF Power Meter V2 is a must for your FPV toolbox. This meter is the best way to check the RF links between you and your drone before you get in the air. It tests both of the critical links, control and video allowing you to tune your system.

Usually, test equipment for microwave (GHz) links is expensive but ImmersionRC has changed that with their RF Power Meters. The V2 now comes with an internal battery, an internal attenuator and more. The PowerScope mode presents a visual representation of the power being transmitted by your radio. You can even do comparative tests on various antenna designs or plot the radiation pattern, even test the direct output power of your transmitters. Testing can be done with both pulsed and continuous wave signals and a wide range of frequencies from 35Mhz to 6GHz, allowing you to test both video and RC systems.

Don’t lose your drone due to a blackout or broken aerial. Test it before flying.

Features:
• Affordable RF power measurements, a fraction of the cost of similar equipment
• Measure pulsed, and continuous RF power levels (e.g. UHF, and A/V Downlinks)
• Calibrated on all common bands used for modeling, and especially FPV
• Accurate RF power measurements
• Touch-Free race compliance
• PowerScope mode
• Average or peak measurements
• Integrated Li-ion battery
• Internal attenuator

Specs:
Power Level: -20dBm -> +30dBm (1)
Calibrated Frequencies: 35, 72, 433, 868, 915, 1200, 2400, 5600-6000MHz in 50MHz steps
Accuracy: +/- 0.5dB @ 25C
Attenuator: 30dB Internal, no external attenuator required up to +30 dBm input power
Absolute Maximum Input Power: 1.3W (31dBm), > 30 second use with > 500mW (27dBm not recommended)
Battery: 3.7V Lithium Ion cell, 10440 size, 600mAh
Current Consumption: ~35mA
Battery Life: ~8 hours
Auto Shutdown: 5-minute timeout
Charging: Micro USB cable
Display: OLED, 128x64 pixels, monochrome
User Input: Joystick
Interfaces: USB, CDC Interface with limited control, and power readout
Antenna: 5.8GHz ‘Sniffer Antenna’ (linearly polarized ~2dBi dipole)
Adapter: Male to Male SMA adapter, to use for conducted power measurements
