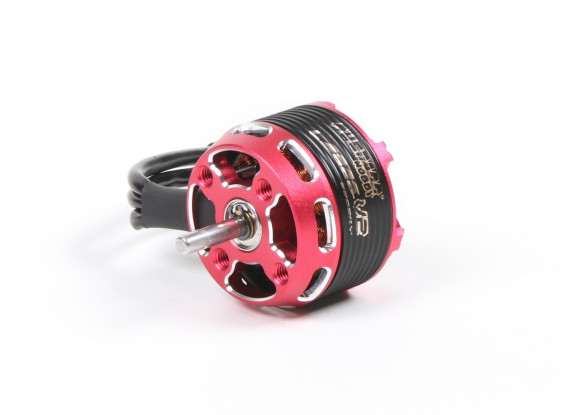

The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and oversized bearings are used for durability. The stator has super thin (0.2mm) laminations, and the rotor is then precision balanced for reliability, and ultra-smooth running at maximum RPMs.
The Rocket Surpass 2826-2000KV motor suits sport, scale, and 3D-type models. This robust motor suits LiPo batteries from 2~4S, and a range of props from 4~8". This motor on test with a 4S battery gave over 1000g of thrust at 24A, making it a great all-rounder. The motor is supplied with a machined prop adapter, complete with mounting bolts, allowing it to be mounted either way round.
Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes oversized bearings for durability
• The stator has super thin (0.2mm) laminations
• Rotor is precision balanced for reliability, and ultra-smooth running
Specs:
Type: Rocket Surpass 2826-2000KV Sensorless Brushless Motor
RPM/V: 2000KV
Input Voltage: 2~4s LiPo (7.4~14.8v)
Max Output: 350W
Max Current: 25A
Thrust: 1000g +
Efficiency: <3g/W
ESC: 30A
Motor Shaft: 3.17mm
Prop Adapter Shaft: M5
Motor Mount Holes: M3 x 16/19mm
Dimensions: 26.2 × 27.7mm
Weight: 51g
Performance Data (2S):
7x6: 132W, 18A, 670g static thrust
8x4.5: 150W, 21A, 674g static thrust
8x6: 172W, 25A, 780g static thrust
Performance Data (3S):
5.5x4.5: 173W, 16A, 720g static thrust
5.5x6.5: 220W, 21A, 940g static thrust
6x5.5: 245W, 24A, 965g static thrust
Performance Data (4S):
4.5x4.1: 200W, 14A, 725g static thrust
4.75x4.5: 250W, 17.5A, 880g static thrust
5.25x4.75: 340W, 24A, 1119g static thrust
-
Kv (rpm / v) 2000.00
-
Max Current (A) 25.00
-
Max Spannung (V) 15.00
-
Leistung ( W) 350.00
-
Welle A ( mm) 3.17
-
Durchmesser C (mm) 28.00
-
Kann Länge D (mm) 26.00
