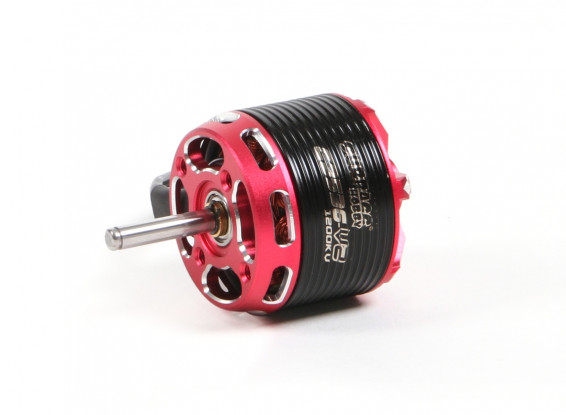

Rocket Surpass 3536-1200KV Sensorless Brushless Outrunner Motor
Rocket Surpass 3536-1200KV Sensorless Brushless Outrunner Motor
Awesome!
The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and double-shielded oversized bearings are used for durability. The motor includes sintered neodymium magnets, the stator has super thin (0.2mm) laminations, and the rotor is precision balanced for reliability, and ultra-smooth running at maximum RPMs.
The Rocket Surpass 3536-1200KV motor suits sport, scale, and 3D-type models. This robust motor suits LiPo batteries from 3 to 4S, on test with a 4S battery it produced 526 watts of power at 38A, making it a great motor for the medium size models. The motor is supplied with a machined prop adapter, complete with mounting bolts, allowing it to be mounted either way round.
Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes double-shielded oversized bearings for durability
• The stator has super thin (0.2mm) laminations
• Includes sintered neodymium magnets
• Rotor is precision balanced for reliability, and ultra-smooth running
Specs:
Type: Rocket Surpass 3536-1200KV Sensorless Brushless Motor
Voltage: 3~4S (11.1~14.8V)
RPM/V: 1200KV
Max Loading: 40A
Max Power: 526W
Resistance: 0.021 Ohms
Motor Diameter: 35mm
Length of Can: 36mm
Shaft Diameter: 5mm
Bolt Holes: M2.5
Mounting Hole Spacing: 25mm
Motor Connectors: 3.5mm bullet
Weight: 105g
Included:
Rocket Surpass 3536-1200KV Sensorless Brushless Motor
Mount & screws
Prop adapter
Performance Data (3S):
9x4.5: 254W, 24A, 1162g static thrust
9x6: 310W, 30A, 1459g static thrust
10x6: 406W, 39A, 1790g static thrust
Performance Data (4S):
7x6: 318W, 23A, 1371g static thrust
8x4.7: 392W, 28A, 1529g static thrust
9x4.5: 526W, 38A, 1904g static thrust
-
Kv (rpm / v) 1200.00
-
Max Current (A) 40.00
-
Widerstand ( mh) 0.02
-
Max Spannung (V) 15.00
-
Leistung ( W) 506.00
-
Welle A ( mm) 5.00
-
Länge B (mm) 38.00
-
Durchmesser C (mm) 35.00
-
Kann Länge D (mm) 36.00
-
Gesamtlänge E ( mm) 62.00
