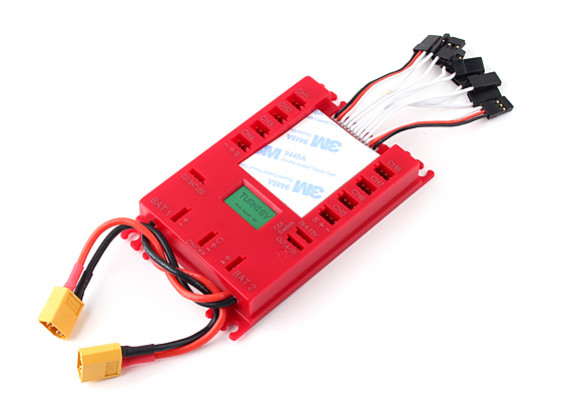

Turnigy Min Stromverteiler (RED)

Generating Links

Turnigy Min Stromverteiler (RED)

Preis:

Now save speichern 0,00 € 0,00 €

42,96 €
Menge:
Versendet aus:
  • USA
  • Global
Bereits gekauft
Status:
Auf Lager
SKU:
373000002
Kostenloser Versand? Klicke hier um mehr zu lernen!

Turnigy einführen zu 30cc und gasbetriebene Modelle geeignet, die Mindeststromverteiler Ubec (RED).

Dieses Gerät verfügt über großartige Funktionen, die Folgendes umfassen: Dual-Batterie-Eingang, 5 V isoliert linear RX BEC, 8-Kanal-RX-Eingang mit zwei Ausgängen auf jedem Kanal - Oberflächen Steuerung Doppel-Servo vereinfacht wird.

Große Einschlüsse sind die unabhängige 5V Linearregler eine separate Stromquelle für den Empfänger, galvanisch getrennt CDI Power & eingebaute Fernzündung zu töten bereitstellt. Empfänger, Servo & CDI Stromquellen sind vollständig voneinander isoliert.

Drei wählbare UBEC Betriebsspannung Optionen (über Jumper):

Direkte Verbindung: verwendet 5V- 6V Eingangsleistung zu liefern - Spannung an Empfänger durch von Batterieeingang passieren
Spannungsabfall 0,5 V: Reduziert ein 6v Eingang 5.5V
Spannungsabfall 7805: Verwendung 7.2V- 8.4V Eingang 6v geregelte Stromversorgung


Dies ist die erste Stromverteiler-System zum sicheren Nest der Empfänger innerhalb der Energieverteilung "Block", wodurch Kabelwege zu verkürzen, das Hinzufügen Schutz für Ihr alle wichtigen Empfänger & Zeit einrichten beschleunigt wird.

Eigenschaften:
• 5 V einstellbar RX BEC
• 30 Amp Servo
• 8 (+1 CDI geschnitten) Eingangskanäle
• 16 Ausgangskanäle
• 5 Statusprüfung LEDs
• Gepolsterte Empfänger Fach & Sichere Montage
• CDI isolierte Strom
• CDI Fernzündungssteuerung (Remote-cut)
• CDI Leistung Statusanzeige
• CDI-Leistungsausgangsanschluss
• CDI Spannungsmonitor LED

Optional: Ein- / Ausgangsspannungsanzeige mit externen Netzschalter

Specs:
Die Eingangskanäle: 8
Ausgangskanäle: 16
Eingangsspannung: 5-8.4V
Servostrom: 30A (40Amp Burst)
Rx Spannung: 5-8.4V (Benutzer einstellbar; Standard ist die Spannung durchlaufen)
Arbeitstemperatur: -20 bis 85 Grad C
Gewicht: 80g
Abmessungen: 116mm x 88mm x 13mm

Video hochladen

Registrieren Sie sich bitte, um Videos hochzuladen anmelden oder Registrieren

Themen
Sortieren nach
Neueste Themen
* Nickname:

* Deine Antwort:


Geben Sie den im Bild gezeigten Text in das Feld unten ein
*Verifizierungs-Schlüssel:
Abbrechen
Senden
Poste ein neues Thema
* Nickname:

* Dein Thema:



Geben Sie den im Bild gezeigten Text in das Feld unten ein
*Verifizierungs-Schlüssel:
Beitragsthema

Registrieren Sie sich bitte, um Bewertungen zu schreiben anmelden oder registrieren

KR | Verifizierter Käufer

  • Quality
  • Overall
  • Value

Nice

May 23, 2021

Nice price, works great.

hjelper | Verifizierter Käufer

  • Quality
  • Overall
  • Value

ok

Mar 18, 2021

fin

Marko | Verifizierter Käufer

  • Quality
  • Overall
  • Value

Turnigy Min Power at low voltage hand

Jul 06, 2020

be a little disappointed with Turnigy Min Power
it is not possible to regulate the battery turns. how do I lower the voltage to 6v?

plumbingbybob | Verifizierter Käufer

  • Overall
  • Value
  • Quality

Nice product.

Apr 18, 2019

Good quality, have not been able to test in flight due to Michigan weather.

David | Verifizierter Käufer

  • Overall
  • Value
  • Quality

Good power hub and great price!

Jan 20, 2018

I got one of these a few months back and was very impressed. On closer inspection I noticed that this is the same as a premium power hub that sells for far more money than the Turnigy brand HK is selling.
The only odd thing I've noticed with it is that when the ignition cut-off is set up, the hub ALWAYS has the ignition off regardless of the switch position on the transmitter. I was able to solve this by activating a switch warning for the ignition cut-off on my transmitter that forces me to make sure the switch is in the "off" position when I turn on the radio or activate the model profile. Had I not been able to do that I would have been REALLY annoyed by this.
Receiver voltage is a pass-thru, but it's not really a problem since almost all modern receivers will take up to 10.5V and (unless you're using UHV 11.1V servos) servos all run on 8.5V or less.
All told, this is a good quality power hub and I will be buying more of these as needed.

simon.castle | Verifizierter Käufer

  • Quality
  • Value
  • Overall

Customer Rated

Apr 08, 2016

Just want to say the tabs for the grommits are a bit weak on the new plastic housing and one has so far broken of on my 55cc plane, so in that respect I prefer the older version.

liveforfun | Verifizierter Käufer

  • Quality
  • Value
  • Overall

Customer Rated

Aug 02, 2015

WARNING! WARNING! WARNING!
The circuit diagram that comes with this product clearly shows 5v to servo's.
However upon using 2 X 3s lipo's for input voltage in became clear that the input battery voltage for main power is the same as the voltage that is outputted to servo's.
So if you use s3 11.1v for power this is the voltage that is output to the servo's
I found this out the hard way and ended up instantly burning out 5 X 70 Digital servo's
Total cost on burnt out servo's 350
The only 5v bec is to the receiver

randr | Verifizierter Käufer

  • Quality
  • Value
  • Overall

Customer Rated

May 21, 2015

Purchased in early May/2015 so I can assume this is the latest version. There are conflicting specs between posted and instruction sheet however to clarify there is no internal rx voltage regulator. What you put in for voltage is what you will supply to the rx. Not an issue for me as I already own a good quality 20 amp BEC to be used with a 2S LiPo as the power source.
The buses are rated at 20 amps in the documentation supplied with the unit.
The internal CDI circuit worked as advertised and is a nice bonus at this price point.
One very good feature is the on/off switch. The unit is designed to turn on when the switch is open or simply not plugged into the unit at all. Should the switch fail in flight it will not turn your power supply off.
Over all I am satisfied this unit will be a solid performer for my 50cc gasser at a very good price point.
KR

Fly Boy | Verifizierter Käufer

  • Quality
  • Value
  • Overall

Customer Rated

Jan 31, 2015

I have received the above pictured panel and it is a simple straight through power distribution panel, whatever power goes in the same comes out. (Three selectable UBEC operating voltage options (via Jumper): There is not a jumper wire to change the output voltage. The RX voltage is a constant 5 VDC. Hobby King has miss represented this item. I do believe the device will work fine but it is not as advertised.

jhstanton | Verifizierter Käufer

  • Quality
  • Value
  • Overall

Customer Rated

Feb 07, 2014

I just got this red power distributor board and here is what I found. Knowing ahead of time this borad passes the power from the batteries striaght to the servo's I opted to use Life batteries. I am getting the 6.7v from the batteries power regulated to the reciever at 4.9v and I am getting 6.7v to all 8 servo's connectors on the board. I am only using a 7 channel reciever so I am using a servo extension on the board from the channel 8 position to supply 4.9v to the CDI power input of the board. That way I will not need an extra battery for my CDI cut switch. I than ran a servo extension from the position 9 on the board to channel 7 of my reciever so when I turn on channel 7 that turns on the CDI for my ignition and this setup works perfectly. I have it on a 82" Skyshark P-40 with a 50cc XYZ engine. Great value for the money
