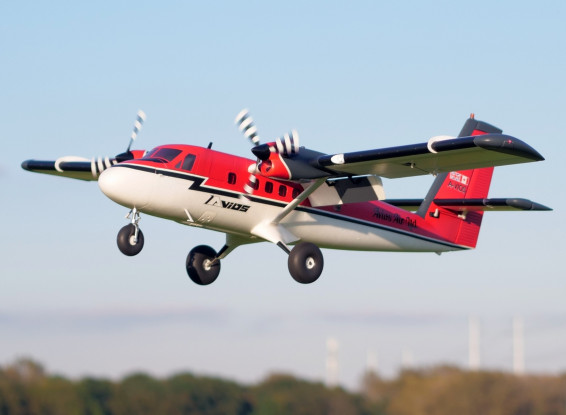

Avios continues to bring you great flying, and high-quality RC models of interesting subjects, this theme continues with the Avios Twin Otter STOL (Short Takeoff and Landing) twin-engine plane. The Avios model captures the looks and great flying characteristics of the full-size inspired Twin Otter. The impressive power-to-weight ratio and light wing loading makes for exceptional low-speed handling and STOL flight characteristics.
The Avios Twin Otter is also crammed full of outstanding features, these include a set of large barn door style flaps, counter-rotating props for improved handling, scale outline with detailed surface finish, and scale plastic parts. Other features include a fully sprung, all metal CNC nose strut with servo saver, low bounce soft foam oversized bush wheels, and day bright LED lights throughout.
The list of outstanding features goes on with a set of floats included, these are easily fitted in place of the tricycle landing gear so that you can have even more fun flying from lakes and rivers. The included Aerostar RVS speed controllers make flying from water on the floats so much easier, they allow you to maneuver and taxi even in the more challenging conditions and situations that can be found on inland waters. To further help when flying with the floats fitted are a pair of optional tail fins, these increase the yaw stability caused by the extra drag of the floats. Avios have also included two magnetically held interchangeable nose sections, one short to emulate the "Series 100" Twin Otter, and one long so that you can quickly change the look of your Twin Otter to a "Series 200".
Supplied as a PNF (Plug-N-Fly) model made in tough EPO foam, the Avios Twin Otter includes the following factory-installed components. 2 x 3020-800KV brushless motors, 2 x Aerostar 30A G2 RVS instant reverse ESC, 2 x 9.3x6 3-blade scale looking propellers, and 7 x 9g metal-geared digital servos. Pre-installed quick connections in the removable wing tips for the wing servos and LED lights make for quick assembly at the field or disassembly for transport or storage, and the battery, and radio access is also very easy courtesy of the large, magnetically held access hatch. The initial assembly takes a little time as there are quite a number of screws used, but once assembled it can pretty much be transported in one piece with the wing tips removed. As mentioned above, once at the field, or lake, it is then just a simple matter of attaching the wing tips with the 4 supplied hex-head machine screws.
Join the rest of our customers and RC pilots who have enjoyed the amazing Avios planes over the years with this fantastic twin-engine STOL plane that can be flown from land or off water. The Twin Otter from Avios is a great-looking must-have plane that performs as good as it looks and is packed full of quality components and some incredible features.
Features:
• Supplied as PNF with pre-installed motors, ESCs, and servos
• Impressive power-to-weight ratio and STOL capabilities
• Supplied with optional floats and long/short magnetically held nose sections
• Large oversized wheels with low bounce soft foam tires
• Day bright LED lights throughout
• Includes Aerostar 30A G2 RVS, instant reverse speed controllers (perfect for float flying)
• Fully sprung, all metal CNC nose strut with servo saver mechanism
Specs:
Type: Avios Twin Otter Scale Twin-Engine STOL Plane w/Wheels & Floats
Build Stage: Plug-N-Fly (screw together assembly w/small amount of gluing)
Wingspan: 1600mm (63")
Length: 1210mm (47.6")
Motors: 2 x 3020-800KV brushless
ESCs: 2 x Aerostar 30A G2 RVS w/instant reverse & XT60 connector
Servos: 7 x 9g digital w/metal gears
Propellers: 2 x 9.3x6 3-blade w/scale outline
Controls: Ailerons, elevator, rudder, throttle, flaps, motor reverse (optional)
Material: EPO
Color Scheme: Near scale red/white/black
Battery: 2200~3400mAh 4S (14.8V) LiPo (not supplied)
All Up Weight: 2100g w/ 2200mAh battery
Supplied:
1 x Avios Twin Otter PNF airframe
2 x 3020-800KV brushless motors
2 x Aerostar 30A G2 RVS ESC
7 x 9g digital servos w/metal gears
2 x 9.3x6 scale-looking 3-blade propellers
1 x Float set
1 x Short nose section
1 x Long nose section
1 x Scale accessory pack
1 x Hardware pack
1 x Quick Setup Guide
Required:
1x 6ch transmitter and receiver
1 x 2200~3400mAh 4S (14.8V) LiPo battery w/XT60 connector
1 x Suitable LiPo charger
Please note: A copy of the assembly manual and QSG is available under the "Manual/Files" tab above. As an extra note, the full assembly manual is delayed, it should be available in the next few days.
-
IC/2:Elec Electric
-
Motorsize(diam-or-cc) 30.00
-
Wingspan(mm) 1600.00
-
Length(mm) 1210.00
-
Official HobbyKing Flight Review of the Avios Twin Otter 1600mm Scale STOL Plane -
Official HobbyKing Flight Review of the Avios Twin Otter on floats -
How to build the Twin Otter!
| Avios Twin Otter 3D printed snow ski's instructions | Download [1] |
| Avios Twin Otter Snow Ski's 3D Print Files | Download [791] |
| Turnigy TWIN X14 ACCESS transmitter setup files for the Avios Twin Otter | Download [614] |
| Avios Twin Otter (PNF) Quick Setup Guide | Download [2] |
| Avios Twin Otter (PNF) Assembly and Setup Manual | Download [3] |
