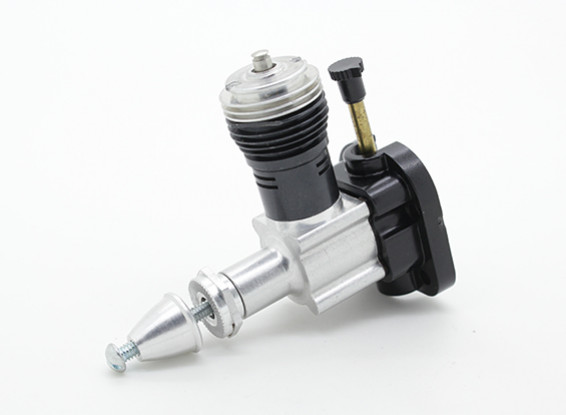

Cox .049 Stinger Glow Engine

For those of you who have been in the hobby for a while the name "Cox" will be no stranger. Many of us started into the hobby with a Cox plastic control line model and many RCers have used the venerable Cox .049 in various forms to power small aircraft, gliders and even helicopters.

Cox engines use a hardened, formed-steel piston which runs in a softer steel cylinder, this does mean however that they require a reasonable break-in time before they get really consistent but this does pay of in the long run with a engine that will go on for years and years. These engines have the typical Cox extruded crankcase, rear mylar reed valve, counter weighted crankshaft with pressed on aluminum drive washer. The backplate is a moulded plastic and incorporates the needle valve assembly and filtered air intake, it also acts as the radial mount for mounting the engine. The conrod is Cox's traditional captured ball and socket link to the steel piston and the one piece machined steel cylinder has bypass ports and slots for the exhaust. Due to this engine having a reed valve fitted between the backplate and the crankcase this will allow the engine to run either clockwise or counter-clockwise, this is determined in which direction you flick it to start, so its great for normal tractor and pusher designed models. The Cox .049 Stinger has 2 boost ports and 2 bypass flutes which enable it to achieve up to 20% more power than other .049 engines in the Cox range.

Enjoy the fun and excitement of running a small glow engine for a relatively low price and for those of us who remember them from years ago, re-live a little bit of your childhood.

NB: Cox glow engines have a glowhead that requires a 1.2-1.5v power source, do not use anything with a higher voltage or it will blow the element, also best to use fuel with a nitro content of 20% or more.

Features:
• Small and lightweight
• Even more power for its size than other Cox .049 engines
• Easy to start
• Can run clockwise or counter-clockwise


Specs:
Capacity: .049 cu ins
Dimensions: H52 x L47 (not inc spinner) x W27mm
Max RPM: 19,000 (Using a 5x3 with 25% nitro fuel)
Weight: 50g

Recommended Prop sizes: 5x3 to 6x4
