DSR-46BW Electric Retract Set - Models up to 3.6kg
DSR-46BW Electric Retract Set - Models up to 3.6kg
Awesome!
Copy and Share the Below URL
The EPF DSR-46BW Electric Retract set contains everything you need for fitting retracting under-carriage to a 0.40 - 0.60 size model, requiring a 2 leg under-carriage, weighing 1.8kg - 3.6kg. These unit's offer a simple and quick to install, reliable and elegant solution to the problems associated with traditional air and mechanical retract sets.
Wire Leg's are included in this kit, with 57mm [2.26 inch] scale, rubber wheels, these leg's can be cut down to suit the length required for your model.
The included control unit features leg stall detection, and will shut down any leg that is trapping against the fuselage to ensure the leg will come back down for landing and also features a low power warning light. The retract unit's feature metal parts for stength and reliability.
Specifications:
Weight: 194g (all components)
Leg Length (Pin to axle): 134mm (4mm wire)
Pin diameter: 5mm
Retract Screw Spacing: 40mm x 33mm
Operating Voltage: 6v~7.4v
Wheel Size: 57mm x 21 mm

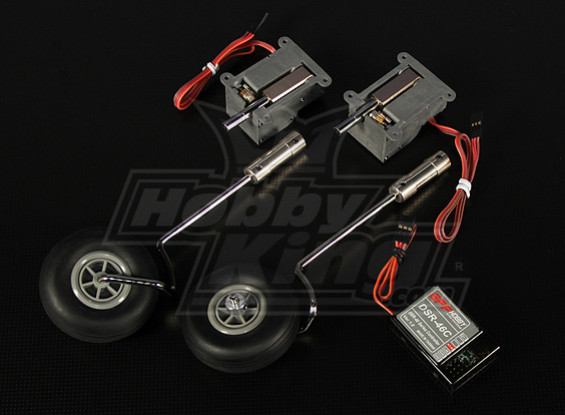

Included:
Control Unit
Instructions
Main Retract (x2)
Wire Type Under-carriage Leg's, with Alloy Adapters & Wheels (x2).
Note: The EPF series of retracts are a high quality, well engineered product manufactured in Taiwan.
