Fighter Jet 64mm EDF (KIT)

Generating Links

Fighter Jet 64mm EDF (KIT)


Price:

Now save save $0.00 $0.00

$34.99
Already Purchased Discontinued Product

Please continue searching for a similar product.
1 year warranty
SKU:
098000003
want FREE shipping? Click here to find out more!

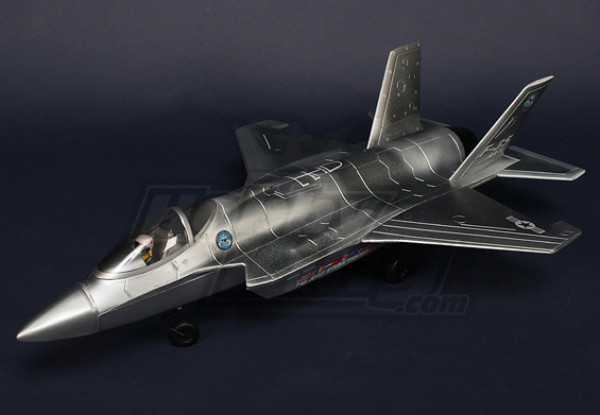

The Fighter Jet is a nicely scaled and perfectly finished foamie. It requires a 4000kv brushless motor to power the 64mm EDF fan. Just include your brushless motor, ESC & servos to complete this kit, also needed is a battery and receiver.

Spec.
Length : 858mm
Wing Span: 607mm
Flying Weight: 680g
Duct fan: 64mm

Required:
Your own TX & RX
Servo: 5x9g
Motor: 4000kv brushless motor
ESC: 40A
1300~1800mah 3S Lipo
Upload video

Only registered users can upload video. Please, log in or register

Topics
Sort by
Most Recent Topics
* Nickname:

* Your Reply:


Please, enter the text shown in the image into the field below
*Verification Code:
Cancel
Submit
Post a new Topic
* Nickname:

* Your Topic:



Please, enter the text shown in the image into the field below
*Verification Code:
Post Topic

Only registered users can write reviews. Please, sign in or sign up

Tuomas | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Sep 10, 2012

Nice looking kit and very cheap. Flying ok but material could be more tight. Easy to land but if grass is too long you need to throw it. See my youtube video by searching my stupeduu nickname. There are also specs that I used.

cam020 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Aug 15, 2012

For $35 i am quite happy with this jet. Assembly will take some time and make sure you check your elevator servos are going to move the correct way before you glue the two fuselage sections together. I used the CG marked on the bottom of fuselage and it flew pretty good with 1600 3s battery. It was fairly windy the first day i flew it and I noticed a little wobble in the roll action, but all in all very nice!

whipper Snapper | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Dec 31, 2011

Happy with what i recieved. no damage, nice plane easy assembly its a guanli model...nicely made, flies fast yet stable to slow in land, great plane indeed, and great price...love it

eckman69 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Nov 13, 2011

I built this plane with a Turnigy Plush 40 Amp ESC and the Turnigy 4000 kV 2615 motor. I now realize that this motor is too small for my 4S 30C batteries, it gets really hot. I should have gotten the 2836 outrunner which is bigger and can handle the 6 blade fan that comes with this plane. I guess I will have to limit throttle in flight.
The plane looks great, with nice details and all. I had some trouble building it though. First, I was not aware that you need to reverse a servo or need a servo reverser for the elevator. Luckily I was able to take a servo apart and reverse it, following instructions on youtube. Then I had some trouble cutting the battery bay, because it is too small for any of the batteries I had (ranging from 1600 to 1800). There's not much foam to cut, so you've got to be careful, and you also have to cut through the plastic battery bay. If you order a recommended 1300 size battery, you may be fine. I also had to balance the fan considerably and I struggled getting the front landing gear installed. While handling the plane during assembly, I put some dents and scratches in the EPS foam, which was to be expected. Personally I like EPS. EPO is tougher, but EPS is lighter and easier to fix; it breaks and doesn't bend like EPO does. All in all it took me an hour or three to put it together, mainly because of the battery bay.
The day of the maiden flight, I foll

KaosKane | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Oct 23, 2011

I got one of the first batch it is a nice plane the ele are huge and i have servos set at 50pcnt of max .

I also have 4 of HK 9G servos one for each control surface.

Where the ele attaches to the jet the little tounge of foam is narrow and week i placed a hollow carbon rod inside the bottom half of the fuse from the middle of the fuse pushing through the foam ending level with the back of the jet i then poked the hinge half into the carbon rod and glued it. This or some other reinforcement is needed or the ele will make the foam bend or break...

I have covered my jet entirely with http://www.hobbyking.com/hobbyking/store/uh_viewItem.asp?idProduct=11338 even the canopy is covered i reckon it looks koolest. ;}
I have HK 60A and 2200 4cel with 3500kv ex LX jet motor (same as warhead 3500kv).
This is the fastest jet i have much faster than stinger 64 on 3cel :}
even faster than a jettiger.

Hope you have fun flying this and can tell me of your setup

CG is at curved D shapes curved end

Finaly i have cut a rectangular hole from the back of the canopy to the flat bit of the D and put my batt there with the esc glued into airstream and rcv in the balsa box below..

Have Fun
