FrSky 2.4GHz ACCST TARANIS X9D PLUS Digital Telemetry Radio System (Mode 2) w/R9M
FrSky 2.4GHz ACCST TARANIS X9D PLUS Digital Telemetry Radio System (Mode 2) w/R9M
Copy and Share the Below URL

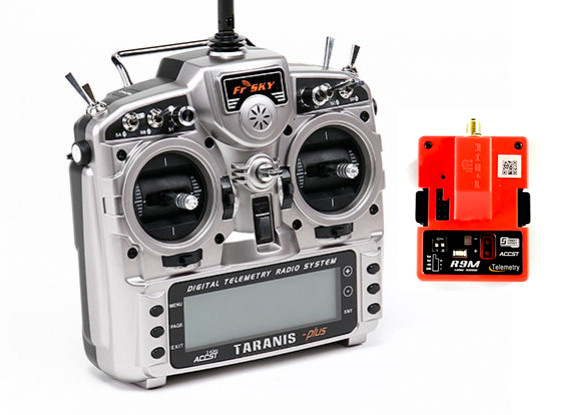

This exciting Frsky package includes the TARANIS X9D PLUS Telemetry Radio and the R9M long-range telemetry module. FrSky is well known for their frequency hopping ACCST technology, that takes advantage of the entire 2.4GHz band, resulting in excellent range and reliability.
The TARANIS mixes the power of the “OPEN TX” open-source software with an unbelievable ergonomic case with 8 programmable switches, two twist knobs and two easy to get to lateral 'slider' pots, and not to mention the ultra-smooth quad bearing gimbals. The LCD has excellent contrast and is adjustable from blue to white. The TARANIS utilizes Voice Alerts from an internal speaker, versus just an annoying beeper. The SD card slot offers unlimited memory options and a USB port for upgrades even a headphone jack.
One of the best features of the TARANIS is its full telemetry capability, as well as RSSI signal strength feedback, there are 3 different programmable failsafe modes and receiver lock, so no more crashes due to selecting the wrong model. If you have stock in other brand receivers or B&F’s, no worries the TARANIS has a JR style RF module slot, so you have the option of other brand modules such as the Orange DSM2/DSMX or Open LRS 433mhz module, or pop in another Frsky module to expand the transmitters capabilities even more with dual RF.
When you put it all together, between FrSky ACCST technology and the power of “OPEN TX” software and community, an ergonomic case with ultra-smooth ball bearing gimbals, a large backlit LCD, New larger battery pack and R9M module. You have versatility and power at an unprecedented value.
Features:
• RSSI alarms (warns you of reception problems before it becomes an accident)
• 16 channels (more when combined with an external module)
• 64 mixers, 9 flight modes
• 16 custom curves with 3-17 points each, 32 logic switches
• Self-test of the transmitter antenna
• 60 Model memory (expandable via an SD card)
• Audio Speech outputs
• USB and SD card slot for unlimited memory, and firmware upgrades, sound editing.
• Long range system capable of up to 3 times the range of current systems
• Quad bearing gimbals that are silky smooth
• State-of-the-art open source software (open TX)
• Super low latency for an ultra-quick response (9ms)
• Large adjustable backlit blue to white LCD display
• Real-time data logging
• Receiver lock (program locked to aircraft)
• JR Style module bay for additional RF modules
• Processor: STM32 ARM Cortex M3 60MHz
• New 2000mAh battery
• Included R9M module
• RED certified for use in EU
Transmitter Specs:
Number of Channels: up to 16
Operating Voltage Range: 6-15v (2s, 3s Lipos are acceptable)
Operating Current: 260mA maximum (both RF module and backlit are on)
Operating Temperature: -10~60C
Backlit LCD Screen: 212 x 64 Monochrome
Model Memories: 60 (expandable by SD card)
Compatibility: FrSky X series, D series and V8-II series receivers
Stick mode: Mode 2 (Left-hand throttle)
R9M Module Specs:
Compatibility: R9 series
Vin Voltage Range: 4V-12.6V
External Power Supply: 4V~12V (2s Li-Battery is recommended)
(*3s Li-Battery is not recommended as external power supply, or it will damage)
Telemetry Interface: Smart Port
Upgrade Interface: Smart Port
Modulations: PXX or CPPM (auto-detected)
RF Operating Frequency: 915MHz
Includes:
Taranis X9D Plus ACCST 2.4GHz Transmitter (Mode 2 version)
1 x R9M telemetry module
*Note: Wall charger not included. See related items below for options
-
