FrSky TAS-01 Telemetry Triaxial Acceleration Sensor

FrSky TAS-01 Telemetry Triaxial Acceleration Sensor

Discontinued Product

Please continue searching for a similar product.
SKU:
TAS-01
WANT FREE SHIPPING? Click here to find out more!

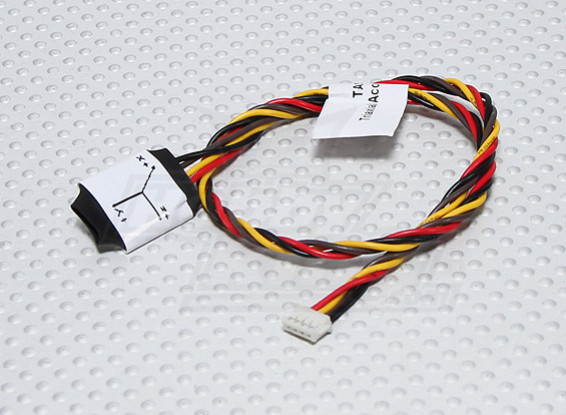

FrSky TAS-01 Telemetry Triaxial Acceleration Sensor (for use with FrSky Telemetry Sensor Hub)

Measurement Range: ±8g (9.8m/s2)
Accuracy: 0.016g
Installation: Use double-sided tape to install the triaxial acceleration sensor on any appropriate surface of the airframe. X/Y/Z axis has been labeled on the sensor.

  • SKU TAS-01
  • Brand -
  • Capacity (mAh) -
  • Shipping Weight 16.0000
  • Length 0.00
  • Width 0.00
  • Height 0.00
Upload video

Only registered users can upload video. Please, log in or register

Only registered users can write reviews. Please, sign in or sign up

many G indication. the instant review is unusefull.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

many G indication. the instant review is unusefull.

Works well. I use it with the kk-controller board.
I use peter fleury's I2C lib for Avr-Gcc.


int16_t accX;
int16_t accY;
int16_t accZ;

int8_t adl,adh;

i2c_start(0x70 I2C_WRITE);
i2c_write(0x02);
i2c_rep_start(0x70 I2C_READ);
adl = i2c_readAck();
adh = i2c_readAck();
accX = (adh << 2) (adl >> 6);
adl = i2c_readAck();
adh = i2c_readAck();
accY = (adh << 2) (adl >> 6);
adl = i2c_readAck();
adh = i2c_readNak();
accZ = (adh << 2) (adl >> 6);
i2c_stop();


verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Works well. I use it with the kk-controller board.
I use peter fleury's I2C lib for Avr-Gcc.


int16_t accX;
int16_t accY;
int16_t accZ;

int8_t adl,adh;

i2c_start(0x70 I2C_WRITE);
i2c_write(0x02);
i2c_rep_start(0x70 I2C_READ);
adl = i2c_readAck();
adh = i2c_readAck();
accX = (adh << 2) (adl >> 6);
adl = i2c_readAck();
adh = i2c_readAck();
accY = (adh << 2) (adl >> 6);
adl = i2c_readAck();
adh = i2c_readNak();
accZ = (adh << 2) (adl >> 6);
i2c_stop();


I am not sure about direction of installation. If i am sure it is face to forward with wires to bottom.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

I am not sure about direction of installation. If i am sure it is face to forward with wires to bottom.

Some of you might find this very usefull, the sensor chip is Bosch BMA150, has an onboard voltage regulator and as said it uses I2C interface. Red = 5V, Black = GND, Brown = SDA, Yelow = SCL

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Some of you might find this very usefull, the sensor chip is Bosch BMA150, has an onboard voltage regulator and as said it uses I2C interface. Red = 5V, Black = GND, Brown = SDA, Yelow = SCL

4 stars because the readings are a small bit of. I dont know if this is a hardware or a software problem but it is still prfectly usable. Device it self uses I2C protocol, so it should be usable in other aplications too. Documentation should be availible on the internet. Also the sticker shows wrong axses. Other than that it is all ok and the price is right.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

4 stars because the readings are a small bit of. I dont know if this is a hardware or a software problem but it is still prfectly usable. Device it self uses I2C protocol, so it should be usable in other aplications too. Documentation should be availible on the internet. Also the sticker shows wrong axses. Other than that it is all ok and the price is right.

Airplan is very well this unit

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Airplan is very well this unit
