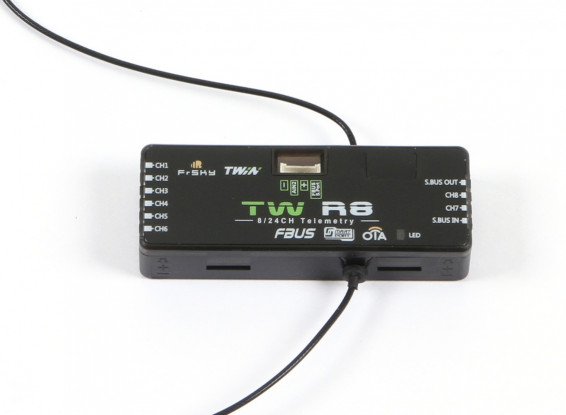

The FrSky TW R8 is an 8-channel, dual 2.4GHz frequency receiver with SBUS/FBUS/S.Port, and 8 PWM channels. These TWIN series receivers feature a stable TW protocol that benefits from simultaneously integrating dual active 2.4GHz frequency bands. The TW active-active protocol is different from the general active-standby redundancy solutions used by other manufacturers. This is where one receiver takes over signal control only when the other goes into failsafe mode. With the TW protocol, the dual/twin 2.4GHz frequency bands on the TW series receiver are active all the time.

The TW R8 receiver has two 2.4GHz antennas, and the signal ports include both SBUS "In & Out" channels, and 8 PWM output channels. Another feature is that it supports telemetry functions through the use of FBUS and S.Port. By setting the TW R8 to use the FBUS protocol in the ETHOS system, the signal control and telemetry can be connected to any device that supports the FBUS protocol. This is through only one lead to achieve bidirectional transmission, it also simplifies the model build by using fewer wires.

Features:
• Simultaneously integrates dual active 2.4GHz frequency bands
• Long range (this will vary based on the RF Power settings)
• 8 PWM channel ports
• SBUS "Out" port supports 16CH/24CH mode
• SBUS "In" port supports signal redundancy
• FBUS/S.Port supports telemetry functions

Specs:
Type: FrSky TW R8 Dual 8ch TW Protocol SBUS/FBUS/S.Port Receiver
Frequency: 2.4GHz
Operating System: ETHOS
No of Channels: 8 PWM and up to 24 w/SBUS
Compatibility: TWIN series transmitters and modules in TW mode
Operating Voltage: 3.5~10V
Operating Current: 80mA@5V
VMR: 0~36V (via AIN2 external device)
Antenna Connector: IPEX4
Dimensions: 54x20x10mm
Weight: 9.8g

Included:
1 x FrSky TW R8 Dual 2.4GHz 8ch TW Protocol SBUS/FBUS/S.Port Receiver
1 x Set of leads

Please note: A copy of the user manual is available under the "Manuals/Files" tab above.
