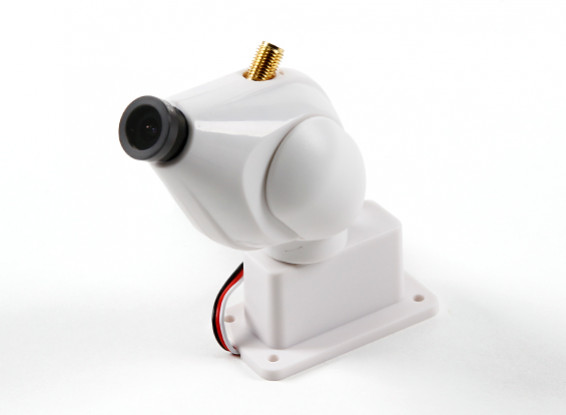

Looking for a high definition FPV Camera with a built in 5.8GHz transmitter along with a pan and tilt function, look no further! The FC108 is the ultimate FPV camera system brought to you at a Hobbyking price!
The FC108 is a super light and compact FPV camera system, weighing in at just 60g! The 5.8GHz transmitter has 32 channels, making it compatible with most FPV Goggles and monitor systems available. The built in pan and tilt function provides a maximum 180 degrees of travel (up/down, left/right) which is powered by 2 very well protected servos.
The high definition camera has an effective pixel array of 976 x 496 which will provide the user with excellent footage! The camera system has a wide input voltage of 6-30v making it perfect for those high voltage RC vehicle applications.
Features:
• Built in 32 channel 5.8GHz transmitter
• Built in Pan and tilt Function 180 degree
• Built-in high definition camera
• Large input voltage range 6-30v
• Unique design aesthetics
Channel Frequencies:
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
5865MHz 5845MHz 5825MHz 5805MHz 5875MHz 5765MHz 5745MHz 5725MHz
5733MHz 5752MHz 5771MHz 5790MHz 5809MHz 5828MHz 5847MHz 5866MHz
5705MHz 5685MHz 5665MHz 5645MHz 5885MHz 5905MHz 5905MHz 5945MHz
5740MHz 5760MHz 5780MHz 5800MHz 5820MHz 5840MHz 5860MHz 5880MHz
Camera Specs:
Effective Pixel Array: 976(H) x 496(V)
Pixel Size: 5.00um x 7.4um
Effective Image Area: 4.88 x 3.67mm
Optical Format: 1/3inch, RGB Bayer filter
Dynamic Range: 63.5dB
SNR: 46.4dB
Video Output: 1v+-0.2vp-p / 75ohm
TV System: PAL/NTSC
Operating Voltage: +6.0V-30V
RF Transmitter Specs:
Transmitting Frequency: ISM 5.6GHz-5.95GHz 32ch
Supply Current: 110mA+/-10Ma
Video Input Level: 1V+-0.2Vp-p / 75ohm
Audio Input Level: 0.5-2.0Vp-p/10k ohm
TV System: PAL/NTSC/SECAM (AUTO)
RF Output Power: 200mW (23DbM+/-0.5dBm)
Antenna Connector: SMA
Operating Temperature: -10 +85 degree
Servo Specs:
Control System: Positive PWM control (1500 usec Neutral)
Operation Voltage Range: 4.8V-6.0V
Operation Temperature Range: -20 +60degree
Standing Torque: 1.0kg.cm
Speed: 0.14 sec/60 deg at no load
Idle Current: 70mA
Running Current: 390mA at no load
Dead Band Width: 5usec
Circle: 15000 times
Direction: Anti-clockwise/ pulse travel 1500 to 900 usec
Driver Type: FET drive
Motor Type: Coreless
Potentiometer Type: Indirect
Operation Travel: 60+/-10degree
Wire Info: Signal
Amplifier Type: Analog
