Hobbyking i86AP Flight Stabilization Control Board

Generating Links

Hobbyking i86AP Flight Stabilization Control Board


Price:

Now save save $0.00 $0.00

$17.99
Already Purchased Discontinued Product

Please continue searching for a similar product.
1 year warranty
SKU:
070000009
want FREE shipping? Click here to find out more!

Accessories

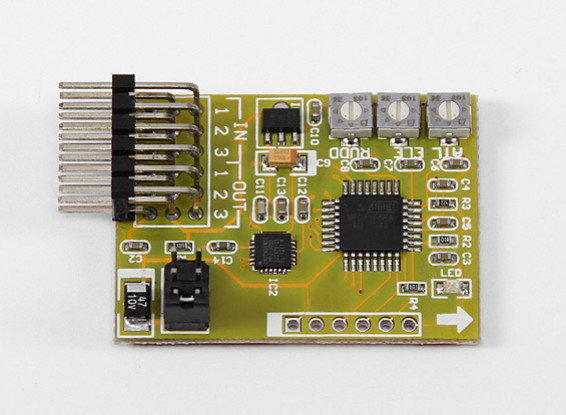

Controlled by an Atmel Mega168PA 8-Bit RISC based micro controller and utilizing a single high precision 3-axis MEMS gyro, the Hobbyking i86AP Flight Stabilization Control Board is capable of stabilizing flight on just about any fixed wing aircraft! It provides added stability by automatically correcting the aileron, elevator and rudder channels in flight. This compensates for unwanted changes in the airplane's attitude due to wind and other factors.

It supports normal, flying wing (delta) and v-tail aircraft. The mode can be easily selected by changing the on-board jumper to whichever aircraft type that you need.

Light weight and compact the i86AP can fit in the smallest of aircraft and includes a small piece of double sided tape to install.

Features:
Supports normal, flying wing (delta) and v-tail aircraft, easily selectable by on-board jumper
Supports 3D flight without undermining stability
Independent gyro gain adjustment for aileron, elevator and rudder
Basic setting functions including stick centering and gyro reversing
Compact and light weight design allows for mounting in the smallest of aircraft

Specs:
Input Voltage: 4v to 6v DC
PWM Output: 50Hz, 1020-2020us
Gyro scale: +/- 1000dps
Gyro sample rate: 1KHz
Operating temp: -40° C to 85° C
Size: 30mm x 40mm
Weight: 8g

Required:
3 x male to male servo lead for connecting receiver to control board


*Note: User manual located under the "files" tab below.

Upload video

Only registered users can upload video. Please, log in or register

Topics
Sort by
Most Recent Topics
* Nickname:

* Your Reply:


Please, enter the text shown in the image into the field below
*Verification Code:
Cancel
Submit
Post a new Topic
* Nickname:

* Your Topic:



Please, enter the text shown in the image into the field below
*Verification Code:
Post Topic

Only registered users can write reviews. Please, sign in or sign up

__Giba | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Nov 30, 2012

No funciona. Quebrei dois avies por tentar usar esse estabilizador.
It does not work. I broke two planes for trying to use this stabilizer.

g2222 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Nov 09, 2012

Quick Review:
Pros:
- Cheap
- Durable
- Works ok

Cons:
- on flying wings, you'll want to solder the rudder signal pin to another signal pin for the board to start properly
- not nearly as precise as my dedicated 2 gyros (which are twice the price of the board) on a flying wing
- consequently hard to find the proper gain setting, generally either the wing over correct (= wooble at high speed), either it under correct (= don't see much effect)

Probably better for planes/wings which aren't flying too fast/where precision settings isn't all that important.

rocketscience | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Oct 22, 2012

What's great about this board is 1) size 2) pins out the side 3) can be used for delta wing. As mentioned already, make sure all 3 channels have input. So for delta wing, I used a Y splitter and sent aileron to the rudder even if there's no rudder. Or just send a signal to rudder from rudder (unused). But the Y makes it simple if you have a long run. Works great, my skyfun flies really steady now and fast. Not so scary to control now.

bgi82 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Oct 15, 2012

i build it in my bixler one and i think its nice. my videos are much better to look because there arent so many shakes an so on from the wind. very nice. i ordered 1 more stabilizer for my nano racer,i think it would be much easyer to fly this fast 4s racer when you mustnt make korrections while you make loops and so on.

pete5996 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Oct 07, 2012

Easy to fit and set up, this device has worked brilliantly for smoothing out the flight of a twitchy West Wings Fournier. It has made the difference between the model sitting unloved and rarely-flown to it now being a regular on the flightline! This stabiliser doesn't make you a better flyer and won't fly the aircraft for you - but it does make the flight look much more scale-like and the flying more enjoyable. Recommended. Just need HK to keep them in stock........
Don't forget the male-male servo leads!

ukrsonic | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Oct 05, 2012

That thing crashed my SebArt Sukhoi-29 3D plane.
I tested that thing on the ground and it worked just fine. When I took off (gave max throttle), the plane started spinning itself and then it hit the ground without control. So before you start flying it check it with max throttle on the ground. Try to shake the plane in different angles.
I hope it helps.

rampage-1 | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Sep 06, 2012

Wow that Swift looks like it needs some work before it fly's. I don't know why HK would put this in the file section. The controller is great for the price.
It work as good as controllers like this twice the price. I am going to try HK Eagle Tree controller next.

Mechanik | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Sep 04, 2012

. , , .
.
, , &#108

flying fool | Verified Buyer

  • Overall
  • Quality
  • Value

Customer Rated

Sep 01, 2012

I used the I86AP in a park zone T28 , It made it fly like it was on a rail. I think for the money it's a great item to help new flyers and also good to help old flyers train for three D flying. Have had no trouble with item after many flights. I will be buying more , please get them in stock. FLYING FOOL.

de-warehouse | Verified Buyer

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Aug 31, 2012

Fr den Preis OK, leider nicht vom Sender aus zu justieren und nicht abschaltbar.
