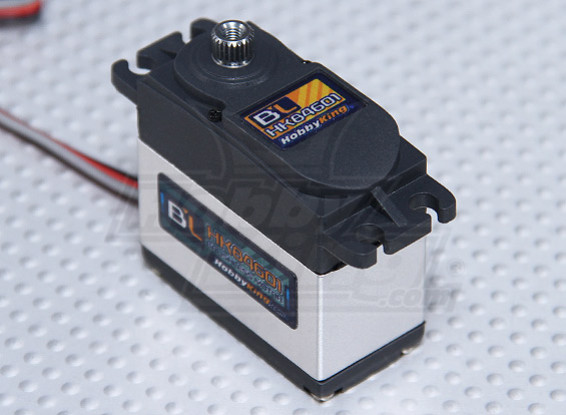

HobbyKing™ BL-84601 Digital Brushless Servo HV/MG 16.10kg / 0.16sec / 56g

Generating Links

HobbyKing™ BL-84601 Digital Brushless Servo HV/MG 16.10kg / 0.16sec / 56g

Already Purchased Discontinued Product

Please continue searching for a similar product.
SKU:
BL-84601
want FREE shipping? Click here to find out more!

The Hobbyking Brushless series use low drain brushless motors for extended motor life and therefore reliability, HV operating voltages also mean this servo can operate directly from a 2s Lipoly Battery, eliminating the need for voltage reduction devices like UBECs and Regulators.

Specs:
Voltage: 6.0v / 7.4v
Speed: 0.20sec/60deg (6.0v) - 0.16sec/60deg (7.4v)
Torque: 13.00kg.cm (6.0v) - 16.10kg.cm (7.4v)
Size: 40mm x 20mm x 37.5mm
Weight: 56.4g
Gear Train: Full Titanium Alloy
Motor: Brushless
Casing: alloy heatsink Centre
Ball Bearing: 3
Lead: 300mm HD with Universal/JR Plug

  • Servo Torque(kg)(min. 0.01kg) 16.10
  • Servo Speed (Sec/60deg) 0.16
  • Servo A(mm) 44.00
  • Servo B(mm) 40.00
  • Servo C(mm) 40.00
  • Servo D(mm) 20.00
  • Servo E(mm) 55.00
  • Servo F(mm) 30.00
