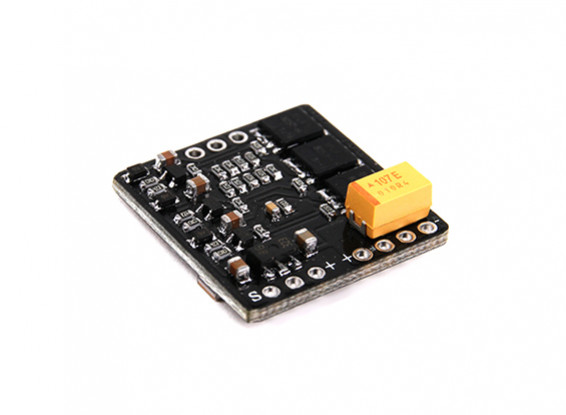

Hobbyking™ Mini 15A (2~6S) Brushless Speed Controller Opto (No Wires)
Hobbyking™ Mini 15A (2~6S) Brushless Speed Controller Opto (No Wires)
Copy and Share the Below URL
An ultra-light, compact 15A brushless ESC for almost any application, but particularly suited to racing and larger multirotors using up to 6s LiPoly packs. Class leading FETs ensure outstanding performance and the capability to handle a 20A burst current (10 seconds only.)
The Hobbyking™ Mini 15A (2~6S) Brushless Speed Controller doesn't come with any wires attached, allowing the user to determine the exact length required without adding the weight and bulk of unnecessary connectors.
Optional 3-pin male plugs are included for attaching to the PC board if preferred.
Its small size means that the Mini 15A ESC can be installed neatly into almost any available space.
Specs:
Max Current: 15A
Burst Current: 20A (10 secs)
Input Voltage: 5~25V (2~6S)
Response: 20~500Hz
Dimensions: 24 x 24 x 8mm
Weight: 5.5g
| Hobbykingâ„¢ Mini 15A | Download [1897] |
| TRUE PINOUT | Download [67] |
| clear pinout description | Download [83] |
Only registered users can upload files.
Please log in or register to start helping your fellow hobbyists today!
