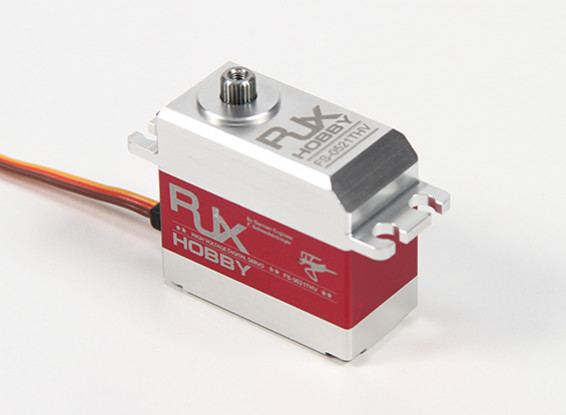

RJX FS-0521THV Metal Gear Digital Tail Servo Ultra High Speed 10.6kg / 0.03sec / 68g
RJX FS-0521THV Metal Gear Digital Tail Servo Ultra High Speed 10.6kg / 0.03sec / 68g
Awesome!
Copy and Share the Below URL
The RJX FS-0521THV provides the ultimate in performance for standard size servos. Cranking out a whopping 10.6kg and 0.03sec transit speed @ 8.4V, you will be hard pressed to find a better servo for your money. The massive torque and lightning fast speed makes this servo ideal for use in large 3D helicopters as a cyclic or tail servo, giant scale airplanes and even large cars/trucks. The entire gear train is metal, making stripped gears virtually impossible. The case is machined from aluminum alloy providing the ultimate in durability and offering excellent heat dissipation.
The FS-0521THV is a true high-voltage servo capable of operating at a constant 8.4V, yet still yields impressive numbers at as low as a 6V input. This makes it a very versatile servo which can be used in many different applications.
A full set of servo hardware is included, as well as an alloy servo arm ideal for use with helicopter cyclic servo applications.
Specs:
Operating Voltage: 6.0~8.4V
Torque: 8.4kg/cm (116.7oz/in) @ 6.0V, 9.6kg/cm (133.3oz/in) @ 7.4V, 10.6kg/cm (147.2oz/in) @ 8.4V
Speed: 0.035sec/60° @ 6.0V, 0.032sec/60° @ 7.4V, 0.03sec/60° @8.4V
Frequency: 760us/333hz
Gear Type: All metal gear
Spline Count: 25T
Motor Type: Coreless
Plug Type: JR
Dimensions: 40x20x37mm
Weight: 68g
-
Servo Torque(kg)(min. 0.01kg) 10.60
-
Servo Speed (Sec/60deg) 0.03
-
Servo A(mm) 42.00
-
Servo B(mm) 41.00
-
Servo C(mm) 38.00
-
Servo D(mm) 20.00
-
Servo E(mm) 55.00
-
Servo F(mm) 25.00
-
RJX Digital Metal Gear Servo
