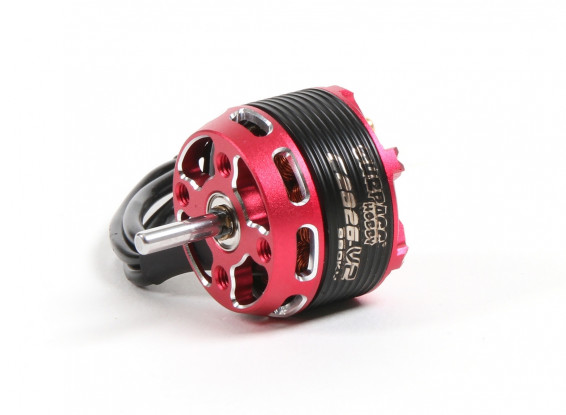

Rocket Surpass 2826-980KV Sensorless Brushless Outrunner Motor
Rocket Surpass 2826-980KV Sensorless Brushless Outrunner Motor
Awesome!
Copy and Share the Below URL
The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and double-shielded oversized bearings are used for durability. The motor includes sintered neodymium magnets, the stator has super thin (0.2mm) laminations, and the rotor is precision balanced for reliability, and ultra-smooth running at maximum RPMs.
The Rocket Surpass 2826-980KV motor suits sport, scale, and 3D-type models. This robust motor suits LiPo batteries from 2 to 3S, on test with a 3S battery it produced 173 watts of power at 16A, making it a great motor for the smaller models. The motor is supplied with a machined prop adapter, complete with mounting bolts, allowing it to be mounted either way round.
Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes double-shielded oversized bearings for durability
• The stator has super thin (0.2mm) laminations
• Includes sintered neodymium magnets
• Rotor is precision balanced for reliability, and ultra-smooth running
Specs:
Type: Rocket Surpass 2826-980KV Sensorless Brushless Motor
Voltage: 2~3S (7.4~11.1V)
RPM/V: 980KV
Max Loading: 16A
Max Power: 175W
Resistance: 0.095 Ohms
Motor Diameter: 28mm
Length of Can: 26mm
Shaft Diameter: 3mm
Bolt Holes: M2
Mounting Hole Spacing: 16-19mm
Motor Connectors: 3.5mm bullet
Weight: 43g
Included:
Rocket Surpass 2826-980KV Sensorless Brushless Motor
Mount & screws
Prop adapter
Performance Data (2S):
12x8: 81W, 11A, 524g static thrust
13x10: 95W, 13A, 577g static thrust
14x10: 102W, 15A, 579g static thrust
Performance Data (3S):
11x3.8: 136W, 13A, 639g static thrust
11x5.5: 158W, 15A, 753g static thrust
11x7: 173W, 16A, 827g static thrust
-
Kv(rpm/v) 980.00
-
Max Current (Motor) (A) 16.00
-
Resistance (mh) 0.10
-
Max Voltage (V) 11.10
-
Power (W) 96.00
-
Shaft A(mm) 3.00
-
Length B (mm) 28.00
-
Can Diameter C(mm) 28.00
-
Can Length D(mm) 26.00
-
Total Length E(mm) 44.00
