SCRATCH/DENT - iCharger 308DUO 1300W Dual Channel 8s Charger M523.10 (UK Warehouse)

Ex-display item in original packaging.

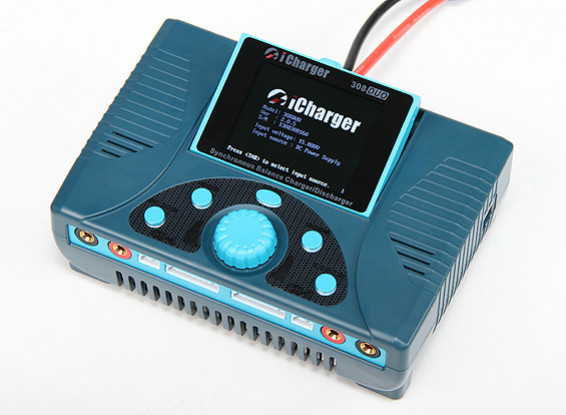

The iCharger 308 DUO is a nicely refined, easy to use charger for your work bench or for use at the field. It has an easy to use knob for selecting the charge/discharge program and a very informative color screen that's also tilt adjustable.

As the name suggests it has two outputs for simultaneous or synchronized charging. An impressive 1300W charge capacity shared between the two outputs means you can charge those 8s high capacity packs quickly and safely at the field. It has a balance charge and stand alone balance function to keep your packs in the best condition and audible warnings with flashing messages on the screen should the charger sense any faults.

You can charge your phone or other USB compatible devices with the 1A 5V USB charger but rest assured, it has a built in over current protection.

This charger is very versatile allowing you to charge LiPo, LiLo, LiFe, NiMh, NiCd, PB and NiZn batteries.It also features charge, discharge, storage charge functions and upgradeable firmware through your PC (Drivers included in the CD instructions).

A very comprehensive and practical charger for the hobbyist who needs all the gadgets.

Features:
• Dual channel output
• Up to 30V input
• Uses synchronous DC/DC converter technology
• 9 Multi-discharge features
• Anti-sparking protection
• Internal temperature protection
• Reversed polarity protection for input and output
• Flip up 2.8-inch LCD color screen
• Easy to use programming knob

Spec:
Maximum charge power capacity: 1300W
Charge current range: 0.0 ~ 50.0A
Discharge current range: 0.05 ~ 30A
Input voltage range: 10.0 ~ 30v DC
Maximum discharge power capacity: 30W
Maximum external discharge power capacity: 280W @ 40V/7A
Current drain for balancing: 2.4A
Balance accuracy: <10mV
LiPo/LiIo/LiFe cell count: 1 ~ 8 cells
NiCd/NiMH battery cell count: 1 ~ 20 cells
Pb battery cell count: 1 ~ 15 cells in series
Battery setup memories: 10
Intelligent temperature control: Yes
PC Connect: Micro SD or USB port
Weight: 910g
Dimensions (LxWxD): 171.0 x 117.8 x 58.8mm

Included:
1 x CD with User manual and usb drivers
1 x Power lead with EC5 Connector
2 x Charging lead with two banana plugs
2 x Balance board leads
2 x Balance boards

Warranty:
No warranty available for this item.
Item used as a display item only.
Please do not ask questions as the item will be sold out within 24hrs.
No backorders allowed.

Scratch & Dent items are sold as-is. What you see in the photo is what you will get.
Because HobbyKing loses money on each Scratch/Dent item sold we cannot offer warranty or answer questions on these products.

Item will be deactivated once a 0 stock level is reached.

For full details please see PRODUCT ID: 076000002-0
