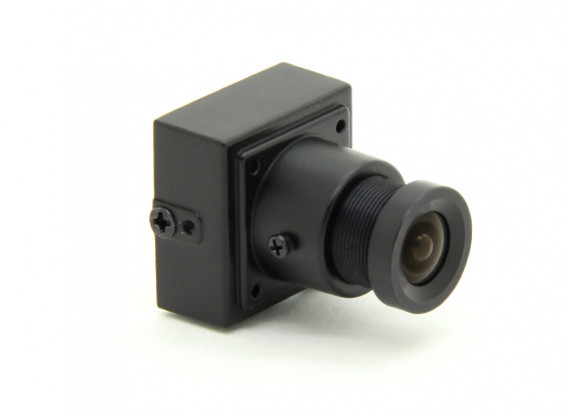

Turnigy IC-120NH Mini CCD Video Camera (PAL)
Turnigy IC-120NH Mini CCD Video Camera (PAL)
Awesome!
Copy and Share the Below URL
Take control of your FPV video experience with Turnigy's range of high quality mini CCD cameras. The mini CCD cameras include on screen control of various video settings, including contrast, brightness and back light correction via the joystick on the supplied wire harness.
The camera offers superior image quality with 700TV Lines with auto tone reproduction (wide dynamic range) and on screen controls. The Turnigy range of FPV cameras offer a 5-15V input range for maximum flexibility!
The camera system is supplied complete with mounting bracket and screw set.
Specs:
Image Device: 1/3" 960H SONY EXview HAD CCD ll
Scanning System: 2:1 Interlace
Scanning Frequency: PAL, 15.625 KHz(H), 50 Hz(V)
H Resolution: 700TVL
Effective Pixels: PAL:976 (H) X 582 (V)
S/N Ratio: 52dB+
Min Illumination: 0.01 Lux / F2.0
Power Consumption: DC5-15V, 60mA
Sync System: Internal
Video Output: 1.0 Vp-p composite
Lens: Fixed board lens
Operating Temperature: 14ºF ~ 122F (-10ºC ~ +50ºC)
Storage Temperature: -4ºF ~ 140F (-20ºC ~ +60ºC)
Dimensions: 30 x 30mm
Weight: 35.5g
