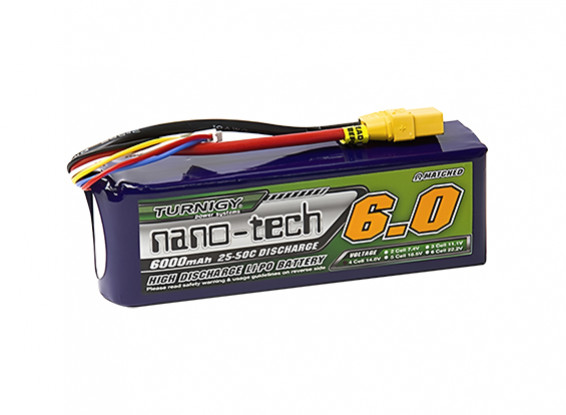

More than just a fancy name. TURNIGY nano-tech Lipoly batteries were designed from the ground up with serious performance in mind. Utilizing an advanced LiCo nano-technology substrate that allows electrons to pass more freely from anode to cathode with less internal impedance. In short; less voltage sag and higher discharge rates than similar density lithium polymer (non-nano-tech) batteries.
For those that love graphs, it means higher voltage under load, straighter discharge curves, and excellent performance. For pilots, it spells stronger throttle punches and unreal straight-up performance. Excellent news for 3D pilots!
Unfortunately with other big brands; numbers, ratings, and graphs can be fudged. Rest assured, TURNIGY Nano-Tech is the real deal, delivering unparalleled performance!
Lithium Polymer batteries are used in many RC hobby industries. Over the last few years, Lipo batteries have become the most popular battery choice for anyone looking for a longer run time and higher power.
Lipo batteries weigh less and can be made into almost any size or shape. Lipo batteries have higher capacities, hold more power, and have a higher discharge rate, meaning they pack more punch. For the safe use and storage of Lipo batteries, you need to follow the rules and treat the batteries with the respect they deserve.
Specs:
Capacity: 6000mAh
Voltage: 4S1P / 4 Cell / 14.8V
Discharge: 25C Constant / 50C Burst
Weight: 623g
Dimensions: 175x49x38mm
Balance Plug: JST-XH
Discharge Plug: XT90
Advantages over traditional Lipoly batteries;
• Power density reaches 7.5 kW/kg.
• Less Voltage sag during high-rate discharge, giving more power under load.
• Internal impedance can reach as low as 1.2mO compared to that of 3mO of a standard Lipoly.
• Greater thermal control, pack usually doesn’t exceed 60degC
• Swelling during heavy load doesn’t exceed 5%, compared to 15% of a normal Lipoly.
• Higher capacity during heavy discharge. More than 90% at 100% C rate.
• Fast charge capable, up to 15C on some batteries.
• Longer Cycle Life, almost double that of standard LiPo technology.
The nano-core technology in lithium-ion batteries is the application of nanometer conductive additives. The nanometer conductive additives form ultra-strong electron-conducting networks in the electrodes which can increase electronic conductivity.
These additives create the ability for imbibition in the carrier liquid to supply more ion channels. This improves the ability of ion transmission and ion diffusion. Through improving electronic conductivity and ion transmission, the impedance is reduced and the polarization of high-rate discharge decreases greatly.
