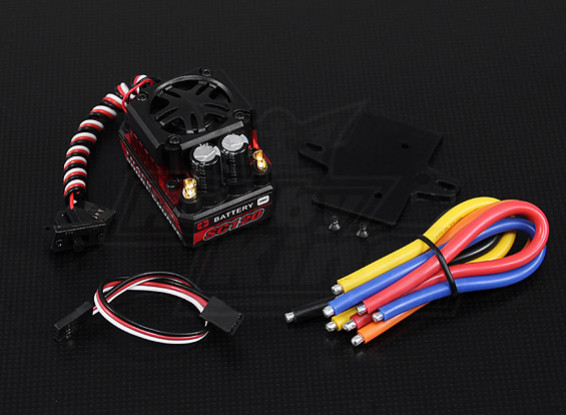

Turnigy TrackStar 120A Brushless Short Course Truck ESC

Turnigy TrackStar 120A Brushless Short Course Truck ESC

Discontinued Product

Please continue searching for a similar product.
SKU:
9052000011
WANT FREE SHIPPING? Click here to find out more!

The Turnigy TrackStar 120A Short Course ESC is the latest addition to our TrackStar ESC range. It's optimized for use with 4 pole motors which are becoming quite popular in the Short Course truck class, but of course works well with any sensorless brushless car motor.

Using a Fast Silicon Labs MCU and high quality On-Semiconductor MOSFETs the TrackStar 120A SC ESC sets a new standard in high quality yet affordable car ESCs. With Intelligent MCU logic the TrackStar series ESCs allow extremely precise start up control and positioning feedback from the motor. This translates in to very smooth start up and acceleration.

The Turnigy TrackStar 120A SC ESC also boasts a host of programming options not usually found in an ESC at this price and can be programmed with ease via the Turnigy TrackStar programming card (sold separately). The Turnigy TrackStar 120A SC ESC also includes 3 x 12AWG motor wires and 2 x 12AWG power input wires.

This ESC comes with 3.5mm bullet plugs pre-installed so you can connect your motor straight away.

Specification:
Cont. Current: 120A
Burst Current: 760A
Car Size: 1/10th~1/8th
Battery: 2~4 Cell Lipo
BEC: 6V / 5A Output
Motor Type: Sensorless Brushless
Size: 55 x 37.6 x 38.5mm
Weight: 87g
On/Off Switch: Yes
Reverse: Yes
Cooling Fan: Yes
Thermal Overload Protection: Yes
Fail Safe Mode: Yes
Motor Terminals: 3.5mm bullet

Programming Options: (can use stick programming or optional program card)
Brake/Reverse Type
Brake Amount
Reverse Amount
Punch Control
Drag Brake
Throttle Dead Band
Voltage Cutoff
Motor Timing
Motor Direction

  • SKU 9052000011
  • Brand TrackStar
  • Capacity (mAh) -
  • Shipping Weight 203.0000
  • Packaging Length 160.00
  • Packaging Width 45.00
  • Packaging Height 107.00
  • TrackStar ESC
Upload video

Only registered users can upload video. Please, log in or register

Only registered users can write reviews. Please, sign in or sign up

i love this esc
small and powerful i use it with a 1900kv motor in my RC8.2e
small enough to be used for a 1/10 car also
i would buy this again, highly recommend

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

i love this esc
small and powerful i use it with a 1900kv motor in my RC8.2e
small enough to be used for a 1/10 car also
i would buy this again, highly recommend

Super powerfull in a compact size,great.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Super powerfull in a compact size,great.

good job!!!!!! and very nice~~@@

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

good job!!!!!! and very nice~~@@

So far so good! This esc seems to works well with my 1900kv motor in my rc8.2e. So much power with 4s. Plus with the program card, which I all use with my trackstar 150A esc, setting up is simple.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

So far so good! This esc seems to works well with my 1900kv motor in my rc8.2e. So much power with 4s. Plus with the program card, which I all use with my trackstar 150A esc, setting up is simple.

Excellent esc.
Better than the all hk esc's.
No cogging, ultimate power.
I was use with 2650kv tts motor, hunger power 4s 5000mah lipo on e maxx.
Run tme 60 minutes..
Excellent power

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Excellent esc.
Better than the all hk esc's.
No cogging, ultimate power.
I was use with 2650kv tts motor, hunger power 4s 5000mah lipo on e maxx.
Run tme 60 minutes..
Excellent power

Used this in T-max conversion, absolutely awesome. Was easy to program with the card, really smooth, no cogging. Teamed up with 2100kv turnigy motor, wheelies on 2s, heaps of fun on 3s and insane 4s. Geared 20 56t, stays nice and cool, could gear it up somemore and am very surprised at how it looks after the batteries. Very happy

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Used this in T-max conversion, absolutely awesome. Was easy to program with the card, really smooth, no cogging. Teamed up with 2100kv turnigy motor, wheelies on 2s, heaps of fun on 3s and insane 4s. Geared 20 56t, stays nice and cool, could gear it up somemore and am very surprised at how it looks after the batteries. Very happy

Put this in my brothers traxxas slash 4x4 running 3s and seems to be handling it good running the turnigy 3190kv, defiantly cooler then the vxl system which cooked, but maybe not quite so much punch, for the price its good.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Put this in my brothers traxxas slash 4x4 running 3s and seems to be handling it good running the turnigy 3190kv, defiantly cooler then the vxl system which cooked, but maybe not quite so much punch, for the price its good.

Great ESC, run this thing all day with a 3674 1900kva in a kyosho 1:8 truggy. Max temps after a race was 118f. Not hot at all. The programming card is a must, easy to use. I'm normally a castle guy but when I found out this is a toro I decided to try it, may put 1 in a buggy as well. The price is right!!

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Great ESC, run this thing all day with a 3674 1900kva in a kyosho 1:8 truggy. Max temps after a race was 118f. Not hot at all. The programming card is a must, easy to use. I'm normally a castle guy but when I found out this is a toro I decided to try it, may put 1 in a buggy as well. The price is right!!

love this esc would recommend to anyone looking at buying this hasn't let me down yet

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

love this esc would recommend to anyone looking at buying this hasn't let me down yet

My second unit of this type. Works like a charm on 4S and is way smoother than the HK120A which it replaced in my case on a madforce VE. Better brakes and generally more power from the same motor.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

My second unit of this type. Works like a charm on 4S and is way smoother than the HK120A which it replaced in my case on a madforce VE. Better brakes and generally more power from the same motor.
