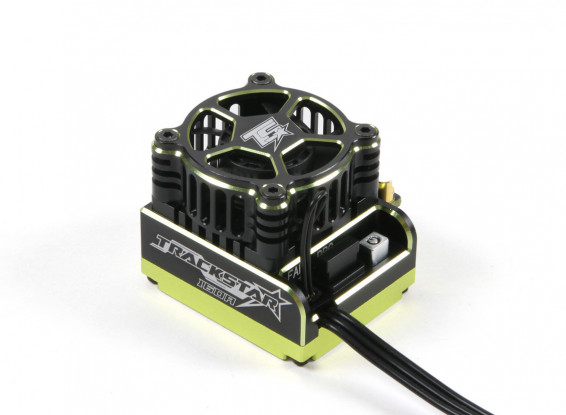

The Turnigy TrackStar TS series of ESCs are the latest generation of competition-level 1/10 scale car speed controllers. They are simple to use, have up to amazing 64° TURBO and BOOST timing settings, offer explosive power, smooth start-up and acceleration, and include a whole host of easy programming options. Using intelligent MCU logic and top-notch components, they set a new standard in quality, yet affordable car electronic speed controllers. The included BEC system is an ultra-stable switch "V" regulator which is switchable from 6~7.4V and can deliver a constant current of 5A, and a peak of 8A.
These ESCs have 34 separate adjustable parameters which can be easily programmed using the optional smart program box (sold separately). These programming options are too many to list here, but a few of the main options are shown below, the rest can be seen in the attached manual under the "Manuals/Files" tab. Other features are multiple protection functions, low voltage, heat protection, etc, built-in super switch mode BEC, offline data recording, cooling fan, and more.
Programming Options:
• Running Mode: Fwd/Brk, Fwd/Rev/Brk, Fwd/Rev
• Max Reverse Force: 25~100%
• Cut-off Voltage: Auto (3.5V per cell), custom 4V~7.4V)
• BEC Voltage: 6V~7.4V
• Sensor Mode: Full sensor, hybrid
• Punch Sw Point: 30~70% (1% increments)
• Throttle: Curve, force, and softening values
• Brake: Drag, max force, initial force, and frequency
• Timing: Boost timing and start, turbo timing and delay
Features:
• TS series is the latest generation of 1/10 scale car ESC
• Simple to use
• Fully programmable using the optional program card
• Up to an amazing 64° TURBO and BOOST settings
• Offers explosive power, smooth start-up and acceleration
• 34 separate adjustable parameters
• Ultra-stable switchable BEC system with "V" regulator
Specs:
Type: Turnigy TrackStar TS160 2S 160A 1/10th Scale Sensored Brushless Car ESC
Continuous Current: 160A
Peak Current: 1100A
Application: 1/10th electric cars/buggies, etc
Battery Voltage: 2S (7.4V) LiPo
BEC Output (V): Switchable 6~7.4V
BEC Output (A): 5A constant, 8A peak
Motor Type: Sensored/Hybrid
Fan Power: 6~7.4V (from built-in BEC)
Reverse: Yes (selectable)
Thermal Overload Protection: Yes
Parameter Setting Method: Program box (not supplied)
Battery Connector: Not supplied
Dimensions: 38.6(L)x37.8(W)x32.2(H)mm
Weight: 57.5g
Included:
1 x Turnigy TrackStar TS160 160A 2S 1/10th Scale Sensored Brushless Car ESC
2 x Sensor lead
5 x 12AWG Connecting leads
1 x Capacitor bank
Please note: A copy of the user manual and programming options is available under the "Manuals/Files" tab above.
| Turnigy Trackstar TS160 160A User Manual | Download [8] |
