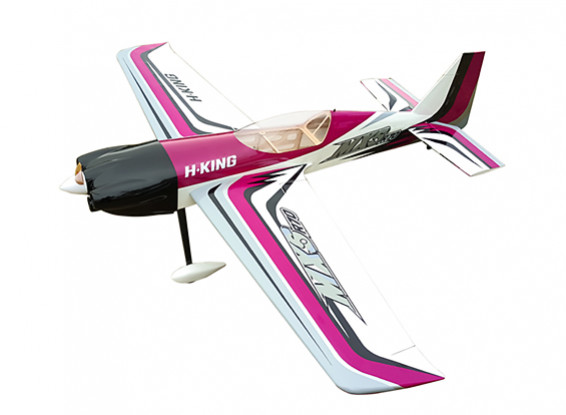

H-King MXS-R 70E V1 1530mm Violet (ARF)

Generating Links

H-King MXS-R 70E V1 1530mm Violet (ARF)


Precio:

Now save ahorra 0,00 $ 0,00 $

198,17 $
Ya comprado Discontinued Product

Please continue searching for a similar product.
1 year warranty
SKU:
9938000001-0
¿Envío gratis? ¡Haga clic aquí! aprender más!

Accesorios

This H-King MXS-R 70E has been designed as a large lightweight fully aerobatic 3D model. Being primarily constructed of lightweight balsa and ply to a very high standard the model is well suited to an all-electric setup. The hardware supplied is of excellent quality making this model very simple and straightforward to assemble, all the major components are pre-built and covered in this eye-catching scheme.


The MSX-R has a 2 piece removable wing for easy transport, 2mm ballink control system, long fiberglass servo horns, one piece carbon fiber U/C, carbon fiber tailwheel assembly and loads more, see the list of features below. Due to its low wing loading it is quite easy to fly and will perform all the usual 3D and aerobatic maneuvers with ease.


Features:
• Up to date structural design
• Lightweight but with high strength
• Excellent aerobatic and 3D performance
• 2 piece removable wings and canopy quick release system
• High-quality hardware including 2mm ballink control system
• Carbon fiber U/C, tailwheel assembly and wing tube
• Aerofoil tail surfaces


Specs:
Type: H-King MSX-R 70E V1 1530mm
Build: Almost ready to fly
Wingspan: 1530mm (60.3")
Length: 1470mm (58")
Wing Area: 47.8sq.dm (740sq.in)
Flying Weight: 2300~2500g (5~5.5lbs)
Color: Violet/White/Black
Recommended Motor: 50mm outrunner brushless (700 watts upwards)
Recommended ESC: 70amps upwards
Recommended Battery: 5~6 cells 3800~5000mah
Recommended Propellers: 16x10E, 17x8E
Radio: 4ch upwards with 5 std size servos


Required:
50mm brushless outrunner motor (700W or more)
70amp ESC or larger
5~6 cell 3800~5000mah lipoly battery
16x10E or 17x8E propeller
4ch or more transmitter and receiver
5 x standard digital servos


Please note:
A copy of the building manual is available under the "Files" tab.

  • IC / 2 : Elec Electric
  • Motorsize ( diam - o - cc ) 50.00
  • Envergadura ( mm ) 1530.00
  • Length(mm) 1470.00
Subir video

Regístrese para subir videos, por favor Iniciar Sesión o registrarse

Temas
Ordenar por
Temas más recientes
* Apodo:

* Tu respuesta:


Ingrese el texto que se muestra en la imagen en el campo de abajo
*Código de verificación:
Cancelar
Enviar
Publica un tema nuevo
* Apodo:

* Tu tema:



Ingrese el texto que se muestra en la imagen en el campo de abajo
*Código de verificación:
Publicar tema

Regístrese para escribir reseñas, por favor Iniciar Sesión o registrarse

FABRIZIO | Comprador verificado

  • Overall
  • Quality
  • Value

FABRYKING

Nov 13, 2019

OTTIMO MODELLO

FABRIZIO | Comprador verificado

  • Overall
  • Quality
  • Value

FABRYKING

Nov 13, 2019

STUPENDO

John | Comprador verificado

  • Overall
  • Quality
  • Value

Insufficient structure.

Nov 07, 2019

I was more than a little disappointed in this plane. While it is attractive enough, the underlying structure has proven to be inadequate. This has proven to be true not only for flying, but for building it the way I want.
I, personally like pinned hinges, but the material into which the hinges are placed have too little material to accept them. The balsa triangle into which they are seated is a little over 1/4" deep and backed by plywood, so you can't slot it for pinned hinges. Speaking of hinges, the hing slots are excessively wide, 2-3".
Almost the entire structure is made of plywood, the metric equivalent of 1/16". This makes the structure exceedingly vulnerable to damage from the inevitable hard landings.
The landing gear mount is a particular source of trouble with this plane. A single piece of the metric equivalent of 1/4" ply is held between 2 Bulkheads of thinner ply, edge glued only, front and rear. Normally this might be strong enough, but the mounting plate is not nearly long enough, to handle the leverage exerted on it when landing. I have taken it to the field 3 days, and gotten in a total of 5 flights. Each day I have returned with the gear knocked out of the plane.
The rest of the structure is equally inadequate. The last time the gear came out, it rebounded and took out a piece of structure, on the side, which I have yet to figure out how to repair.
Were this plane offered as ready to cover, I might consider another one, since I could reinforce key places, but as it comes, it's just plain weak.

fanflyer | Comprador verificado

  • Overall
  • Quality
  • Value

Good looks and size

Sep 14, 2019

I have not built this plane yet. It is a direct replacement for one I had purchased from general hobby. Same exact plane except for color. I gave it one less star on quality due to the aluminum landing gear. It is a little on the weak side after the plane is fitted out with the running gear, (servos, batteries, switches, fuel tank and plumbing, engine and mount, prop, screws nuts and bolts, etc.) It is a very good looking plane. And the proportions are very capable of lively flight performance. I would not recommend this build or level of performance for a beginner. If you have some experience with mid to high level aircraft, you will enjoy it.

fabryking | Comprador verificado

  • Overall
  • Quality
  • Value

good

Sep 01, 2019

ottimo modello perfetto in 3d lo motorizzato con un sk3 5045 500 kv in 5 s elica 16x8 apc assorbimento a terra 62 ah servi bsm 621 mg+ perfetti autonomia 8 minuti con batteria 4200 5s al controllo finale 38%

Love it | Comprador verificado

  • Overall
  • Quality
  • Value

Great plane

Aug 29, 2019

The mxs is a great looking plane love it

Slash24nl | Comprador verificado

  • Overall
  • Quality
  • Value

Good value for money

Aug 28, 2019

It's a well built plane for a very affordable price. Mine came with a bent aileron, had to use heat gun to try and get it straight. Thag was the only issue, for the rest: great value and good quality

Thorsten | Comprador verificado

  • Overall
  • Quality
  • Value

Worth the money

Jul 27, 2019

Very good packed. Good quality of all Parts included.

Geoffrey | Comprador verificado

  • Overall
  • Quality
  • Value

hobby king MXS 70 plane

Jul 24, 2019

just received my MXS plane , came in a very strong transit box, so no worries about transit damage, on initial checking it seems to be to a very high standard ( Goldwing ?) all carbon accesories, airframe neatly covered with stickers supplied loose for you to apply if you want to , all fittings and fixings supplied in seperate bags and all seem to be of good quality, for the money it seems to be a bargain, the only slight niggle is no paper instructions or instructions on a disc, but this is covered by checking the files section, cant wait to assemble and fly the thing .
