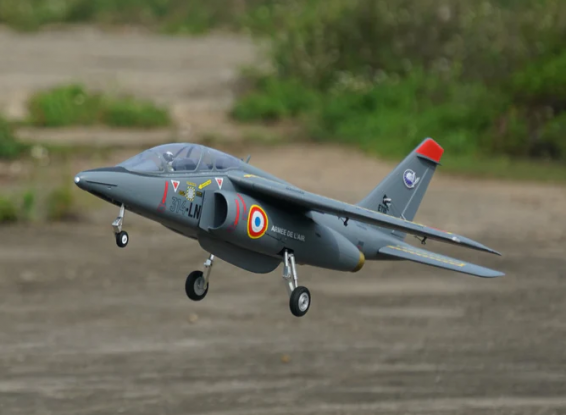

This fantastic looking XFly 80mm EDF jet is a detailed scale model of the French Air Force Alpha Jet, it is packed full of scale details including molded-in panel lines, a simulated antenna, a crystal clear canopy with cockpit detail, removable gun pod, and much more. Scale features include servoless retracts with CNC machined scale, sprung oleos and sequenced gear doors, functional LED nav and landing lights, operational flaps, and full-flying horizontal stabs. Take your scale flying experience to another level with this impressive 6S-powered XFLY Alpha Jet in a French Air Force color scheme.

The power system includes a highly efficient 12-blade 80mm fan, a powerful 6S compatible high-rpm brushless inrunner motor, and a 100A ESC. This power system delivers an incredible 3400g (7.5lb) of thrust, giving the Alpha Jet almost unlimited vertical performance, extremely high speeds, and a realistic turbine-like sound. Although the Alpha jet can be very fast, and is more than capable of most aerobatics that an EDF model can perform, it also has very stable flight characteristics and excellent low-speed handling. This means that it is not only a good choice for the enthusiast who enjoys high speeds, aerobatics, and fantastic performance, but it also makes an excellent EDF jet trainer

Assembly of the EPO airframe is very straightforward as no gluing is required, integrated wing connectors and only 8 screws facilitate a fast and easy assembly. Also included on all the flying surfaces are digital metal-geared servos with ball-link equipped linkages, these deliver precise control responses to all your stick inputs.

All in all, the attention to detail and the outstanding features of the XFLY Alpha Jet advanced jet trainer add up to deliver a flying experience like no other.

Features:
• "Galaxy-X8" 80mm EDF system with high-RPM brushless inrunner motor and 100A ESC for an incredible performance (Max thrust 3400g (7.5lb)
• Digital metal-geared servos on all flying surfaces and ball-link equipped linkages for precision control
• Servoless retracts with CNC machined sprung landing gear oleos, and trailing-link struts that are perfect for operating from grass strips
• Working flaps for shorter takeoffs and landings, and fully functioning nav and landing lights
• Easy screw-together assembly, and integrated wing connectors for easy wing attachment
• Large battery tray allows for up to a 6S 5000mAh battery for increased flight times
• Constructed of durable EPO foam

Specs:
Type: XFLY (PNF) Alpha Jet w/80mm 12 Blade EDF Fan & 6S Power System
Wingspan: 970mm (38.2in)
Length: 1250mm (49.2in)
Flying Weight: 2850g
Fan: Galaxy-X8 80mm 12-blade
Motor: 3280-2200KV brushless inrunner
ESC: 100A brushless w/7A UBEC & XT90 connector
Servos: 5 x 9g digital, 3 x 13g digital, 1 x 25g digital
Lights: 6 x LED nav and landing lights
No of Channels: 6 (throttle/ailerons/elevator/rudder/retracts/flaps)
Battery Compartment: 170Lx55Wx45Hmm
Recommended Battery: 22.2V (6S) 4000~5000mAh LiPo (not supplied)
Color Scheme: Grey with French Air Force insignia
Material: EPO foam

Included:
1 x XFLY Alpha Jet EPO airframe w/grey color scheme and French Air Force markings
1 x Galaxy-X8 80mm 12-blade EDF unit
1 x 3280-2200KV brushless inrunner motor
1 x 100A brushless ESC w/7A UBEC
5 x 9g digital servo
3 x 13g digital servo
1 x 25g digital servo
1 x Set servoless retracts w/sprung oleos
1 x Set of LED navigation and landing lights

Required:
1 x 6ch transmitter and receiver
1 x 22.2V (6S) 4000~5000mAh LiPo battery w/XT90 connector
1 x Suitable LiPo charger

Please note: A copy of the assembly manual is available under the "Manuals/Files" tab.
