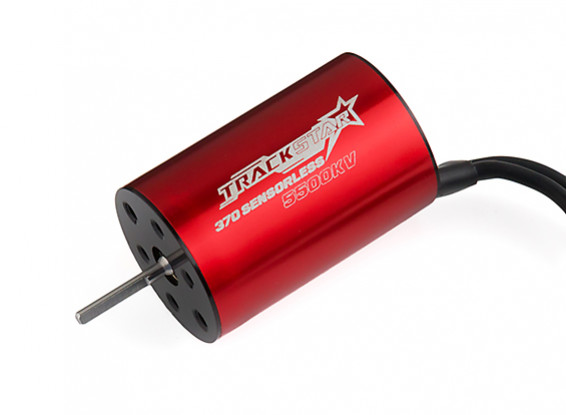

TrackStar 370 Sensorless brushless Motor 5500KV
TrackStar 370 Sensorless brushless Motor 5500KV
Accessoires
Trackstar motors are well know in the RC community for performance and the latest 370's are no exception. These sensorless brushless motors have precision bearings, correctly rated magnets, balanced rotors, and premium grade steel shafts.
With Trackstar motors you can be assured that quality and performance has not been compromised and that these motors represent outstanding value for money
Features:
• Hand wound for maximum copper fill
• Precision balanced rotor will boost the efficiency and performance of the motor
• Nickel-plated neodymium rotor for maximum motor acceleration, braking power and performance in high-temperature conditions
Specs:
Motor KV: 5500
Resistance: 40.8
Idle Current: 1.2
Max Voltage: 3.7v - 8.4v
Recommended ESC: 20A
Max Power: 150
Efficiency: 90%
Working Temperature Limit: 150
Case Length: 37mm
Case Dia: 24mm
Shaft Dia: 2.0mm
Connector: 3.5mm Bullet
Weight: 63.3g
-
Kv ( rpm / v) 5500.00
-
Max Current (A) 20.00
-
Résistance ( mh ) 40.80
-
Max Tension (V) 8.00
-
(W ) 150.00
-
Arbre A ( mm ) 3.00
-
Longueur B ( mm ) 37.00
-
Can Diamètre C ( mm ) 24.00
-
Longueur Can D ( mm ) 36.00
-
Longueur totale E ( mm ) 51.00
-
