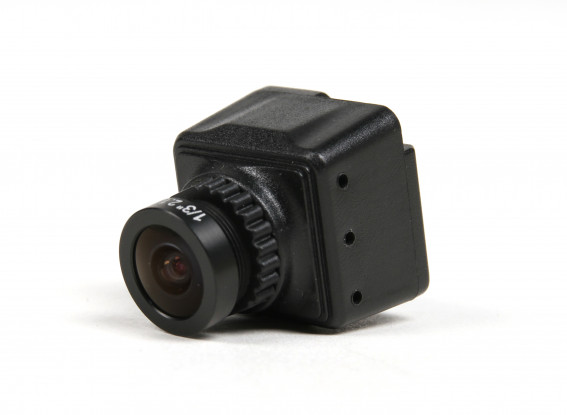

FPV Mini Camera 600TVL 1/3 Sony Super HAD II CCD (Black)
FPV Mini Camera 600TVL 1/3 Sony Super HAD II CCD (Black)
Accessoires
Special Price 4,99 $US
You save 10,98 $US
Prix normal 15,97 $US
This FPV mini camera comes with a 1/3" SONY Super HAD II CCD image sensor with 600TVL resolution and a 2.1mm lens for a high-quality image at the best of prices.
The camera is supplied with an adjustable mount that enables your camera to get the perfect viewing angle. The camera comes with an easy to use OSD menu system for easy setup via your goggles. There is a provided 5D-OSD menu cable to help make these menu adjustments.
The camera has input voltages of 5 to 36VDC making it easy to use directly from 2S to 6S Lipo battery packs (or more). The camera will work in most light conditions due to the use of Digital Wide Dynamic Range (D-WDR) and 2D Noise Reduction (2DNR). Depending on your location it can run in either NTSC or PAL mode.
This is a very economic FPV camera which will provide a welcome addition to your FPV Setup.
Features:
• 600TVL high picture quality
• 1/3" SONY SUPER HAD II CCD
• Quality 2.1mm Lens
• Powerful OSD menu
• Mirror function
• Nextchip 2040 DSP
• PAL / NTSC
Specs:
Image Sensor: 1/3" SONY Super HAD II CCD
Resolution: 600TVL
Lens: 2.1mm
Signal System: PAL / NTSC
S/N Ratio: >60dB (AGC OFF)
Electronic Shutter Speed: PAL:1/50 ~ 100,000; NTSC:1/60 ~ 100,000
AutoGain Control (AGC): Yes
Back light compensation (BLC): Yes
Min. Illumination: 0.01Lux @ 1.2F
WDR (Wide Dynamic Range): D-WDR
DNR (Digital Noise Reduction): 2DNR
Day/Night: Color / Auto / B&W
Privacy Areas: 8
Power: DC 5 to 36V
Power Consumption: 70mA
Dimensions: 22.3 x 22 x 27mm
Net weight: 12g
Includes:
1 x 600TVL FPV Camera
1 x Camera mount assembly
1 x 5D-OSD menu cable
2 x Camera cables
