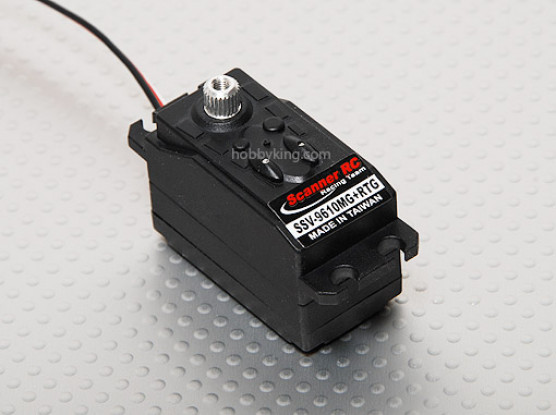

HXT 9610 Low Profile Metal Gear RETRACT Servo

Generating Links

HXT 9610 Low Profile Metal Gear RETRACT Servo


Prix:

Now save économisez 0,00 $US 0,00 $US

17,95 $US
Déjà acheté Discontinued Product

Please continue searching for a similar product.
1 year warranty
SKU:
HXT9610MG-RTG
Livraison gratuite? Cliquez ici pour apprendre plus!

HXT 9610 Low Profile Metal Gear RETRACT Servo
Profil bas servo avec 185deg Voyage, excellent pour
le train d'atterrissage se rétracte systèmes ou des portes à la bombe / systèmes de hachures.

Poids: 34g
Dimensions: 42 x 21,5 x 22mm
Couple @ 4.8v: 7,8 kg-cm
Couple @ 6.0V: 9,0 kg-cm
Vitesse @ 4.8v: .31sec / 60deg @ sans charge
Vitesse @ 6.0V: .24sec / 60deg @ sans charge
Gardant: Oui Dual / M10x6
Type d'engin: Alliage / acier
Taille: 42x21.5x22mm
Remarque: S'il vous plaît changer le D / R dans votre TX pour faire le 185deg servo.
Avertissement: Ce servo parcourt le 185deg plein. Il n'a pas les points médians. Il est pour les systèmes de rétracter ou systèmes de hachures seulement.
  • Servo Couple ( kg ) ( min . 0,01 kg ) 9.00
  • Servo Vitesse ( Sec / 60deg ) 0.24
  • Servo A (mm) 33.00
  • Servo B ( mm ) 41.00
  • Servo C ( mm ) 29.00
  • Servo D (mm) 21.00
  • Servo E ( mm ) 54.00
  • Servo F ( mm) 16.00
attributeset-11
Close

Dimension Diagram Guide

  • attributeset-11

Close

Télécharger une video

Inscrivez-vous pour télécharger des vidéos, s'il vous plaît se connecter ou s'inscrire

Sujets
Trier par
Sujets les plus récents
* Surnom:

* Votre réponse:


Veuillez saisir le texte affiché dans l'image dans le champ ci-dessous
*Code de vérification:
Annuler
Soumettre
Publier un nouveau sujet
* Surnom:

* Votre sujet:



Veuillez saisir le texte affiché dans l'image dans le champ ci-dessous
*Code de vérification:
Sujet du message

Inscrivez-vous pour écrire des critiques, s'il vous plaît se connecter ou s'inscrire

yaibandy | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Sep 03, 2014

Be careful when ordering this item. I ordered one and what I received the HXT9610MG, not the RTG. The package says its HXT9610MG-RTG but it contains the HXT9610MG. I received not only a wrong item but also a lower priced item. HobbyKing will not take responsibility for this mistake. So beware.

cockpit2 | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Sep 29, 2012

I am really very curious to see how is gonna work in my hands.I read so many different opinions of modelers.Many of them touch the limit with negative descriptions,some happend to say good words.I ordered two and wait to evaluate when they arrive.

Ken | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Mar 11, 2012

this servo is for retract gear travel range is 185degree,

people just make sure before buy,

that is nice servo with very strong torque, totally nice servos,

recommend for all guys reference.

Mauricio Antonio | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Jul 17, 2011

Funciona perfeitamente servo realmente muito bom eu do 5 estrelas pra ele esta em um Rambler 45. Otimo servo

Sierra | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Jun 05, 2011

The servo is very good. Perfect for my KYOSHO spitfire 40. Good fit in the wing and extremely strong.

Torque 4.8v 7.8kg

recomanded.

Ten | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Jun 02, 2011

Very bad QC.I bought 3 of it. One can swing,but it has no torque.The other can work ,but torque is about 3 kg.(they claim that it is 7.8 Kg.)



















Cool Pilot | Acheteur vérifié

  • Overall
  • Quality
  • Value

Certified Buyer Rated

May 21, 2011

for first time test after received parcel i was surprise because the servo not work tested using my turnigy servo tester i thought HK sent me rubbish product. but after connect it to my 8FG on my Hyperion P51 mustang it work better than my expectation before. Very good & work great. Now i have no retract problems anymore. I really like and recommended this product due to quality, performance also design (height dimension).

MojoMaestro | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Mar 08, 2011

Good servo, 1 unit is strong enough to power 3 retract wheels on my Airwolf 600, a slow servo perfect to give ur models a realistic effect.
This is a good purchase.

Client | Acheteur vérifié

  • Overall
  • Quality
  • Value

Customer Rated

Mar 02, 2011

i just installed one of this servos on a top flite P-47 ARF 60 and it works just fine, it is a little too fast for scale landing gear, it rotates 185 degrees, it is very strong and it can handle 6 volts nicely. i posted a video of four of them working at 4.5 volts.

Mauricio D | Acheteur vérifié

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Mar 02, 2011

i just installed one of this servos on a top flite P-47 ARF 60 and it works just fine, it is a little too fast for scale landing gear, it rotates 185 degrees, it is very strong and it can handle 6 volts nicely. i posted a video of four of them working at 4.5 volts.
