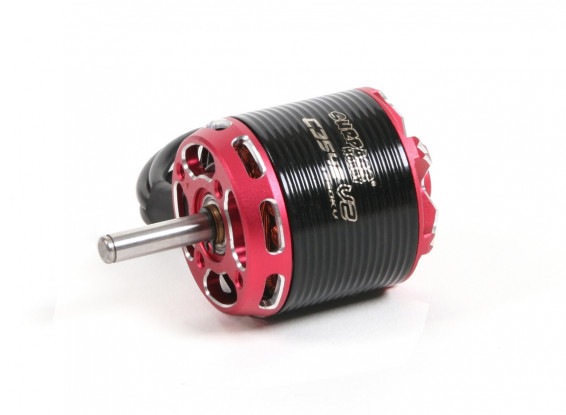

The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and oversized bearings are used for durability. The stator has super thin (0.2mm) laminations, and the rotor is then precision balanced for reliability, and ultra-smooth running at maximum RPMs.
The Rocket Surpass 3542-1250KV motor suits sport, scale, and 3D-type models. This robust motor suits LiPo batteries from 3~4S, and on test with a 4S battery gave 707 watts of power at 52A, making it a great motor for medium-size models. The motor is supplied with a machined prop adapter, complete with mounting bolts, allowing it to be mounted either way round.
Features:
• The can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes oversized bearings for durability
• The stator has super thin (0.2mm) laminations
• Rotor is precision balanced for reliability, and ultra-smooth running
Specs:
Type: Rocket Surpass 3542-1250KV Sensorless Brushless Motor
Voltage: 3~4S LiPo (11.1~14.8V)
RPM/V: 1250KV
Internal resistance: 0.026 Ohms
Max Loading: 55A
Max Power: 770W
Motor Diameter: 35mm
Length of Can: 42mm
Shaft Diameter: 5mm
Bolt Holes: M2.5 25/25mm
Motor Connectors: 3.5mm bullet
Weight: 167g
Included:
Rocket Surpass 3542-1250KV Sensorless Brushless Motor
Mount & screws
Prop adapter
Performance Data (3S):
10x4.7: 391W, 38A, 1641g static thrust
10x5: 406W, 39A, 1718g static thrust
11x4.7: 495W, 49A, 1957g static thrust
Performance Data (4S):
8x4: 393W, 28A, 1453g static thrust
9x4.5: 590W, 43A, 2069g static thrust
9x6: 707W, 52A, 2554g static thrust
-
Kv ( rpm / v) 1250.00
-
Max Current (A) 55.00
-
Résistance ( mh ) 0.03
-
Max Tension (V) 15.00
-
(W ) 770.00
-
Arbre A ( mm ) 5.00
-
Can Diamètre C ( mm ) 35.00
-
Longueur Can D ( mm ) 42.00
