GEP-XT60 PDB BEC 5V & 12V

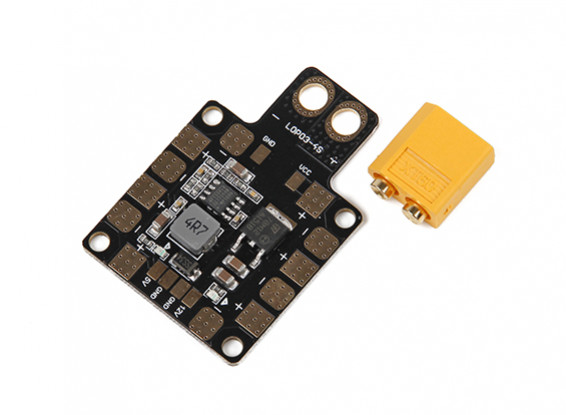

The GEP-XT60-PDB HUB has been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layers PCB. It distributes power from a LiPoly battery pack to 6 ESCs, as well as providing synchronized and regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.

It offers an XT60 socket to conveniently connect a LiPoly battery pack.

Features:
• 2oz copper, 4-layers & 1.6mm PCB
• Built-in XT60 Socket
• Total 6 pairs ESC solder tabs are fit for H or X type frame
• Regulated 5V and 12V outputs
• LED indicators
• Short circuit tolerant

Specs:
General:
Input voltage range:  9 - 18V DC (3S-4S LiPoly battery)
Regulated 5V and 12V outputs
Dimensions: 36 x 50 x 4 mm (without XT60)
Mounting: 30.5 x 30.5mm, Φ3mm
Weight: 7.5g (w/o XT60), 11g (w/ XT60)

ESC outputs:
Continuous current: 25Ax4 or 15Ax6
Peak current (10 seconds/minute): 30Ax4 or 20Ax6

BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos
DC/DC synchronous buck regulator
Voltage: 5.0 +/- 0.1VDC
Continuous current: 2 Amps (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
Short-circuit tolerant (5 seconds/minute)

BEC 12V output:
Designed for Video TX or FPV camera with linear regulator.
The battery should be 4S LiPoly (13~18V DC)
Voltage: 12.0 +/- 0.3VDC
Continuous current: 500mA (Max.0.8A 5s/minute)
Short-circuit tolerant (2 seconds/minute) BEC 12V @ 3S LiPoly
Output voltage= 3S LiPoly voltage -1V
