Hobbywing XRotor Micro 60A 4in1 ESC BLHeli-32 DShot1200 (3~6S)
Hobbywing XRotor Micro 60A 4in1 ESC BLHeli-32 DShot1200 (3~6S)
Awesome!
Copy and Share the Below URL

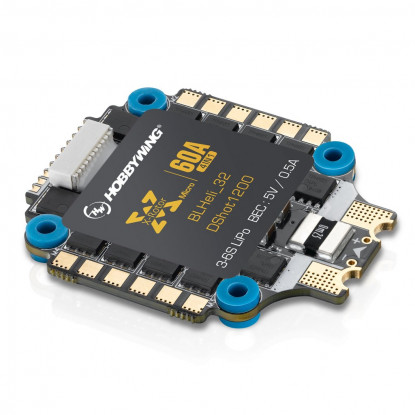

The Hobbywing XRotor Micro 60A 4in1 ESC is designed for FPV flying. It comes with BLHeli_32 firmware and can operate up to DShot 1200. The 5V BEC will power other devices such as the Flight controller and allows the FC to monitor voltage and current in real-time. It comes with shock-absorbing mounting holes to effectively reduce external vibration.
A unique feature is that it has two ways of connecting the ESC to the FC. 1) connecting via soft cables or 2) soldering via solder tabs. Large Japanese MOSFETs allows for higher voltage/current endurance using up to 6S lipo batteries. The 32-bit microprocessor operates up to 48MHz to provide high.
The ESC firmware uses hardware generated PWM from the motor for smooth throttle response and silent operation. The use of Damped light for regenerative braking, for very fast motor retardation, and active freewheeling.
This is a very handy 4-in-1 ESC with plenty of punch.
Features:
• High-performance 32-bit microprocessor with the running frequency of up to 48MHz for excellent performance
• BLHeli_32 firmware is the third generation BLHeli.
• All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation and inherently also does active freewheeling
• The code supports features to support sync loss.
• The code supports regular 1-2ms pulse width input as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us)
• Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is detected by the ESC at power up
• The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be handy for finding lost crafts.
• Onboard 5V BEC, powering different accessories such as FC, VTx, Camera and LED lights, etc
Specs:
Continuous current: 60Ax4
Peak current: 80Ax4
BEC: 5V@0.6A
Input Voltage: 3~6S
Weight: 15g
Size: 52x42x6.6mm
Mount: 30.5x30.5mm
Input Connector: XT60 on lead
Applications: 130-300mm FPVs
