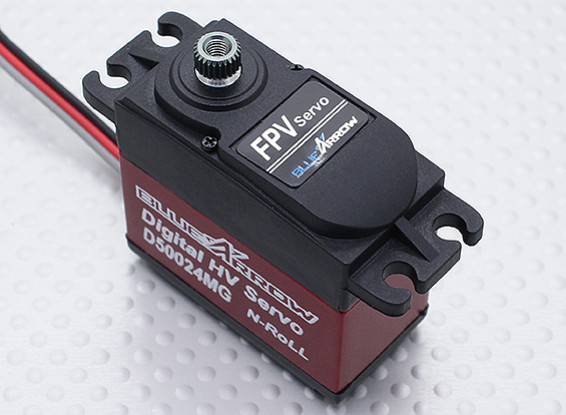

D50024MG 360 gradi continuo 5.0kg Viaggi Digital N-Roll giunto cardanico Servo / 0.05s / 60g

Generating Links

D50024MG 360 gradi continuo 5.0kg Viaggi Digital N-Roll giunto cardanico Servo / 0.05s / 60g

Prezzo:

Now save risparmia 0,00 € 0,00 €

45,38 €
Già acquistato Discontinued Product

Please continue searching for a similar product.
SKU:
019000004-0
Spedizione gratuita? Clicca qui per saperne di più!

N-Roll 360 ° giunto cardanico Digital Servo con Metal Gears, coppia elevata, specificamente progettato per FPV / Camera Pan / Tilt Applicatons.

Specifiche:
Tensione: 4.8V / 6.0V
Velocità: 0.06sec / 60deg (4.8V) - 0.05sec / 60deg (6.0V)
Coppia: 5.00kg.cm (4.8V) - 6.00kg.cm (6.0V)
Pulse: 0.9ms-2.1ms (1,5 ms Medio Pulse)
Angolo: 360 ° + Nº (CW CCW)
Dimensioni: 40mm x 20mm x 39,2 millimetri
Peso: 60g
Treno di ingranaggi: 7075 Titanio-lega di alluminio
Motore: Motore Coreless
Cuscinetto a sfere: 3
Piombo: 260 millimetri con Universal / JR Plug
Anti sismica
Alta risoluzione
uscita lineare

  • Servo Coppia ( kg) ( min . 0.01kg ) 6.00
  • Servo Velocità ( Sec / 60deg ) 0.05
  • Servo A ( mm ) 44.00
  • Servo B ( mm ) 40.00
  • Servo C ( mm ) 38.00
  • Servo D ( mm ) 20.00
  • Servo E ( mm ) 55.00
  • Servo F ( MM ) 30.00
attributeset-11
Close

Dimension Diagram Guide

  • attributeset-11

Close

Carica video

Registrati per caricare video, per favore accedi o registrati

Temi
Ordina per
Argomenti più recenti
* Nickname:

* La tua risposta:


Si prega di inserire il testo mostrato nell'immagine nel campo sottostante
*Codice di verifica:
Annulla
Invia
Pubblica un nuovo argomento
* Nickname:

* Il tuo argomento:



Si prega di inserire il testo mostrato nell'immagine nel campo sottostante
*Codice di verifica:
Pubblica argomento

Registrati per scrivere recensioni, per favore accedi o registrati

Robert | Acquirente verificato

  • Overall
  • Value
  • Quality

Excellent for robotics applications

Dec 24, 2017

I've been beating these up - switching directions quickly with large moment, jamming them, and forcing them to take high loads. In situations where every other servo I've tested would fail, these have been fine. 10/10 would reccomend

Robert | Acquirente verificato

  • Overall
  • Value
  • Quality

Excellent for robotics applications

Dec 24, 2017

I've been beating these up - switching directions quickly with large moment, jamming them, and forcing them to take high loads. In situations where every other servo I've tested would fail, these have been fine. 10/10 would reccomend

Robert | Acquirente verificato

  • Overall
  • Value
  • Quality

Excellent for robotics applications

Dec 24, 2017

I've been beating these up - switching directions quickly with large moment, jamming them, and forcing them to take high loads. In situations where every other servo I've tested would fail, these have been fine. 10/10 would reccomend

Robert | Acquirente verificato

  • Overall
  • Value
  • Quality

Excellent for robotics applications

Dec 24, 2017

I've been beating these up - switching directions quickly with large moment, jamming them, and forcing them to take high loads. In situations where every other servo I've tested would fail, these have been fine. 10/10 would reccomend

Robert | Acquirente verificato

  • Overall
  • Value
  • Quality

Excellent for robotics applications

Dec 24, 2017

I've been beating these up - switching directions quickly with large moment, jamming them, and forcing them to take high loads. In situations where every other servo I've tested would fail, these have been fine. 10/10 would reccomend

Eric | Acquirente verificato

  • Value
  • Quality
  • Overall

Best servo for robotic servo motor

Apr 03, 2017

These continuous servos are super fast and reliable. They helped me win in robotic competitions. I can imagine it performing well for other applications.

dberladyn | Acquirente verificato

  • Quality
  • Value
  • Overall

Customer Rated

Jul 26, 2013

These are the first non-cheap servos I've bought aside from Futaba gear. Very jittery on my HK Servo Tester, but smooth as silk hooked up to my Futaba radio. I'm impressed, I havent had the chance to actually use it yet but I feel good about the purchase and I think I'll consider Blue Bird servos again in the future. So far the only thumbs down I have noticed are the useless cheap box which would be nice if it wasnt made of such thin plastic. And the other negative thing is the cheesy poorly written desperate sales pitch written in Chinglish fo a manual. Give up the bs and just simply state the basic facts. Its all we care about.
