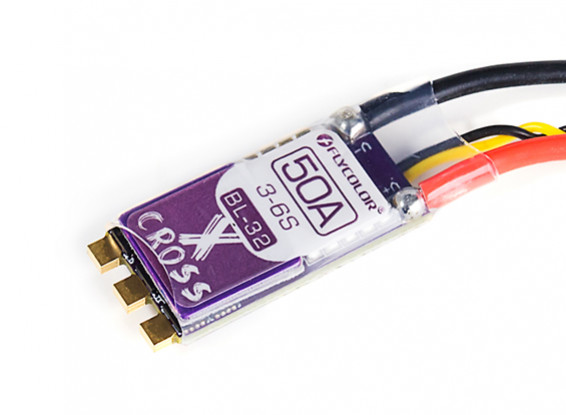

Flycolor X-Cross BL-32 50A Brushless ESC
Flycolor X-Cross BL-32 50A Brushless ESC
The Flycolor X-Cross BL-32 ESCs are a high-powered addition to your FPV drone. The built-in 32-bit processor and BLHeli_32 firmware gives a quick response to any situation.
These ESC’s come with a top-class MOSFET that has less inner resistance which helps allow larger current throughput which allows for higher KV motors and more power load. The metalized contact edge provides an excellent soldering point for stronger contact. The 50A ESC comes with a highly efficient aluminum heat sink for better heat dissipation. A silicone twisted-pair throttle signal cable provides less crosstalk for a more stable flight.
Get a set of Flycolor X-Cross BL-32 ESC now for faster response and better control of your drone.
Features:
• ARM 32-bit Cortex MCU, frequency up to 48 MHZ
• BLHeli_32 firmware, which is designed for superior functionality and performance
• Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up
• Dshot signal is supported at any rate up to at least Dshot1200
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
• Supports higher KV motor and more power load, more suitable for a violent flight of a racing drone
• The silicone twisted-pair of the throttle signal cable effectively reduces crosstalk
• Aluminum heat sink effectively slow down the temperature rise
• Metalized edge ensures stronger soldering point
• Faster response, less lag
Specs:
Battery: 3~6S
Continuous Current: 50A
Burst Current: 60A
BEC: No
LED: RED
Heatsink: Yes
Size: 33x16x6mm
Weight: 10g
Firmware: BLHeli_32
Typical Applications: 170-450 multirotor
