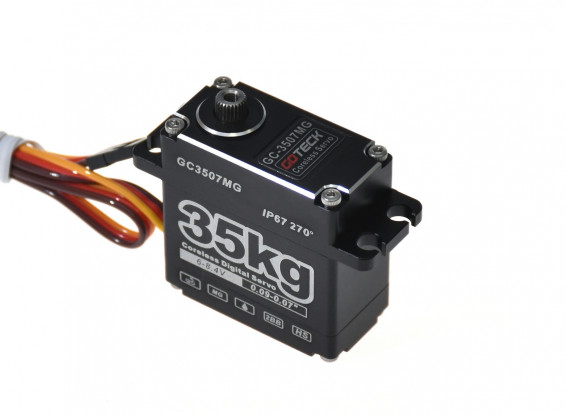

GOteck GC3507MG Metal Geared 270° High Torque HV Digital Servo 35kg/0.07sec/75g
GOteck GC3507MG Metal Geared 270° High Torque HV Digital Servo 35kg/0.07sec/75g
Awesome!
The GOteck range of digital high torque standard size servos are up there amongst some of the best for quality and reliability at a price that offers excellent value for money.
The GC3507MG is a very fast (0.07sec), high torque (35kg), metal-geared standard-size servo with an amazing rotation of 270°. This makes it very suitable for a variety of applications including robotics, or as a sail winch for a model yacht. The servo is supplied with a mounting kit and a selection of plastic servo horns, plus one metal servo horn. The entire servo case is CNC machined from solid 6061 aluminum, which is extremely strong and acts as a very good heatsink for the motor and amplifier.
Specs:
Model No: GC3507MG
Torque@6V: 30kg
Torque@8.4V: 35kg
Speed@6V: 0.09sec/60°
Speed@8.4V: 0.07sec/60°
Rotation: 270°
Gear Train: Metal
Bearings: Twin BB
Motor: Coreless
Amplifier: Digital
Dimensions: 40x20x40mm
Weight: 75g
-
Servo Coppia ( kg) ( min . 0.01kg ) 35.00
-
Servo Velocità ( Sec / 60deg ) 0.07
-
Servo A ( mm ) 40.00
-
Servo B ( mm ) 40.00
-
Servo D ( mm ) 20.00
