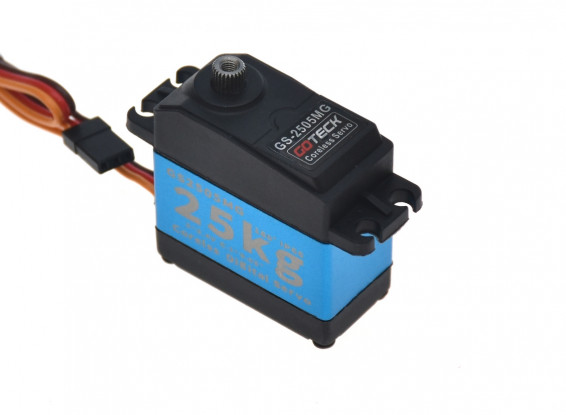

GOTeck GS2505MG Metal Geared 180° High Torque HV Digital Servo 39kg/0.05sec/60g

GOTeck GS2505MG Metal Geared 180° High Torque HV Digital Servo 39kg/0.05sec/60g
The GOTeck range of digital high torque standard size servos are up there amongst some of the best for quality and reliability at a price that offers excellent value for money. The top and bottom cases are made from high-strength fiber-reinforced nylon and the center case is CNC machined from solid 6061 aluminum, this acts as a very good heatsink for the motor and amplifier.
The GS2505MG is a very fast (0.05sec), powerful high torque (39kg), metal-geared standard-size servo with a rotation of 180°, supplied with a mounting kit, and a selection of plastic servo horns, plus one metal servo horn.
Specs:
Model No: GS2505MG
Torque@5V: 26kg
Torque@8.4V: 39kg
Speed@5V: 0.10sec/60°
Speed@8.4V: 0.05sec/60°
Rotation: 180°
Gear Train: Metal
Bearings: Twin BB
Motor: Coreless
Amplifier: Digital
Dimensions: 40x20x40.5mm
Weight: 60g
-
Servo Coppia ( kg) ( min . 0.01kg ) 39.00
-
Servo Velocità ( Sec / 60deg ) 0.05
-
Servo A ( mm ) 40.50
-
Servo B ( mm ) 40.00
-
Servo D ( mm ) 20.00
