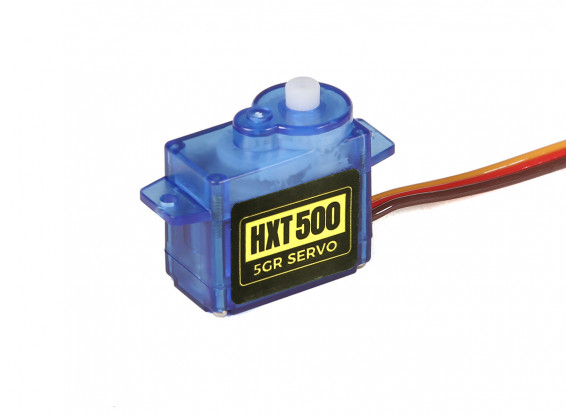

HXT500 micro servo 0,6 kg / 0.08sec / 6.2g

Generating Links

HXT500 micro servo 0,6 kg / 0.08sec / 6.2g

Prezzo:

Now save risparmia 0,80 € 0,80 €

Special Price 3,18 € 3,18 €

You save risparmia 0,80 € 0,80 €

Was  3,98 €

Quantità:
Spedito da:
  • USA (PDX)
Già acquistato
Stato:
disponibile
SKU:
HXT500
Spedizione gratuita? Clicca qui per saperne di più!

Dimensioni: 21.3x11.5x22 mm
Tensione: 4.8V ~ 6v
Peso: 6.2g
Velocità: 0,08 sec / 60 (4.8V) 0,07 sec / 60 (6.0V)
Coppia: 0.6 kg-cm (4.8V) 0,8 kg cm (6.0V)
Lavorare Temp: -30C ~ 60C
Teflon Boccola, filo di 15cm, motore coreless
Servo braccia e vite inclusi

AVVERTIMENTO
Questi servi si possono trovare su eBay e altri negozi asiatico venditore vicino a questo prezzo, però attenzione, non contengono componenti di Taiwan / Giappone. HexTronik (i produttori di questi servi) hanno due standard, uno è in vendita locali, e l'altro è la qualità di esportazione con connettori importati e ingranaggi in resina da Taiwan e Giappone.
Il nostro HXT500 e HXT900 sono solo l'esportazione, e non costruiti per il mercato nazionale.

Perché siamo riusciti a ordinare direttamente dalla fabbrica in grandi lotti, i servi a volte può essere rosso, blu o verde, a seconda di ciò che i nostri clienti all'ingrosso richiesti. Non allarmatevi, il colore non indica che si tratta di un servo diverso.

  • Servo Coppia ( kg) ( min . 0.01kg ) 0.60
  • Servo Velocità ( Sec / 60deg ) 0.08
  • Servo A ( mm ) 25.00
  • Servo B ( mm ) 21.00
  • Servo C ( mm ) 22.00
  • Servo D ( mm ) 11.00
  • Servo E ( mm ) 30.00
  • Servo F ( MM ) 16.00
attributeset-11
Close

Dimension Diagram Guide

  • attributeset-11

Close

Carica video

Registrati per caricare video, per favore accedi o registrati

Temi
Ordina per
Argomenti più recenti
* Nickname:

* La tua risposta:


Si prega di inserire il testo mostrato nell'immagine nel campo sottostante
*Codice di verifica:
Annulla
Invia
Pubblica un nuovo argomento
* Nickname:

* Il tuo argomento:



Si prega di inserire il testo mostrato nell'immagine nel campo sottostante
*Codice di verifica:
Pubblica argomento

Registrati per scrivere recensioni, per favore accedi o registrati

Jon | Acquirente verificato

  • Overall
  • Quality
  • Value

Good servo with not perfect quality control

Jun 20, 2025

I bought 4 of these and upon testing them when they arrived I found that one was bad. I filed a claim and received a replacement free of charge, so I'm not dinging the overall review score for the bad servo but it was annoying to have to deal with a 25% failure rate.
Now that I have 4 working servos, I am excited to use them in a 28" wingspan custom built plane with an 1806 2400KV motor running a 5X3 triple blade prop on 3S LiPo for ailerons rudder and elevator control, with mixed-in flaps on the ailerons. These servos are lite and seem to be powerful enough for my intended application.

coreman | Acquirente verificato

  • Overall
  • Quality
  • Value

Great 5g analog servo

Jun 19, 2025

These servos work great for my 32" wingspan flat foamies. I just wish they allowed more than 4 per order so I could get free shipping instead of ordering 4, 6 times

coreman | Acquirente verificato

  • Overall
  • Quality
  • Value

Good quality 5g analog servo

Jun 09, 2025

My go to 5g analog servo for flat foamies. Just wish I could buy more than 4 per order

Coreman | Acquirente verificato

  • Overall
  • Quality
  • Value

Great 5g servo for flat foamies

Jun 09, 2025

My go to servo for Flat Foamies. Just wish there wasn't a qty 4 limit on them

Spedito | Acquirente verificato

  • Overall
  • Quality
  • Value

Shipped

Jun 06, 2025

Shipped

Marek | Acquirente verificato

  • Overall
  • Quality
  • Value

Good servo

Jun 03, 2025

Used to have them in the past and they were working good - bought it as a spare part

. | Acquirente verificato

  • Overall
  • Quality
  • Value

Good

May 31, 2025

Nice!

rogerd | Acquirente verificato

  • Overall
  • Quality
  • Value

Exhibition 1

May 23, 2025

One of the servos appeared to clash so changed to another

DS | Acquirente verificato

  • Overall
  • Quality
  • Value

small but not too small

Apr 05, 2025

I needed a tailwheel steering servo for a custom made F4U corsair retracting tailwheel. I installed this little servo as part of the tailwheel assembly. Has sustained a few rough landings without giving in. Bought a few more to have some spares for coming projects.

Coreman | Acquirente verificato

  • Overall
  • Quality
  • Value

Durable low cost servos for foamies

Mar 06, 2025

These are my go to servos for under 250g foamies when I don't need the full power of the 9g HXT900 servos. They are very durable
