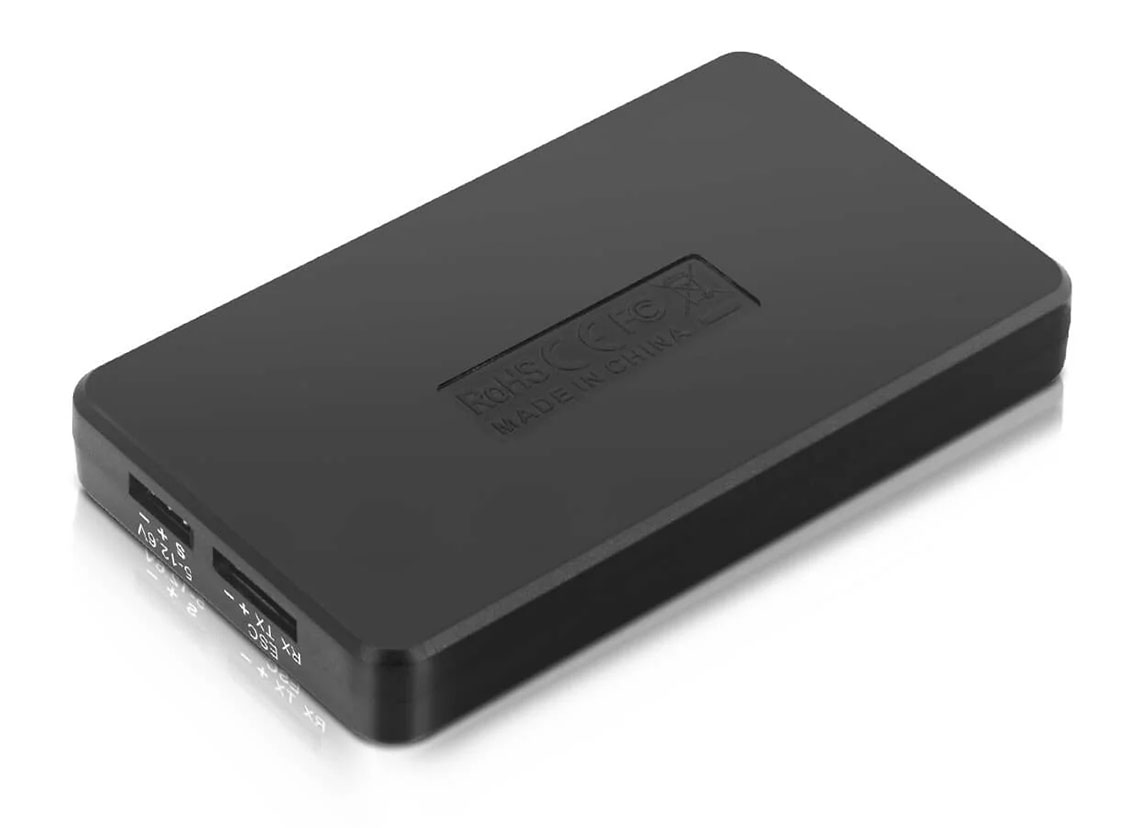

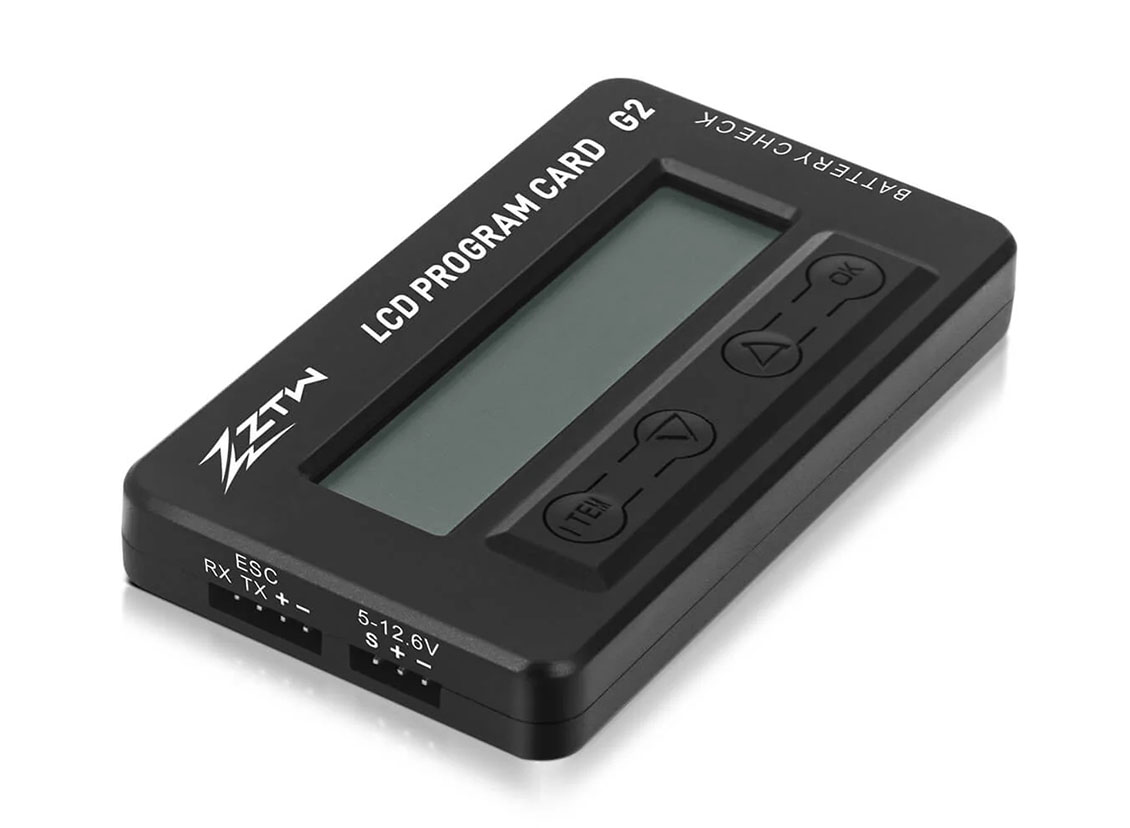

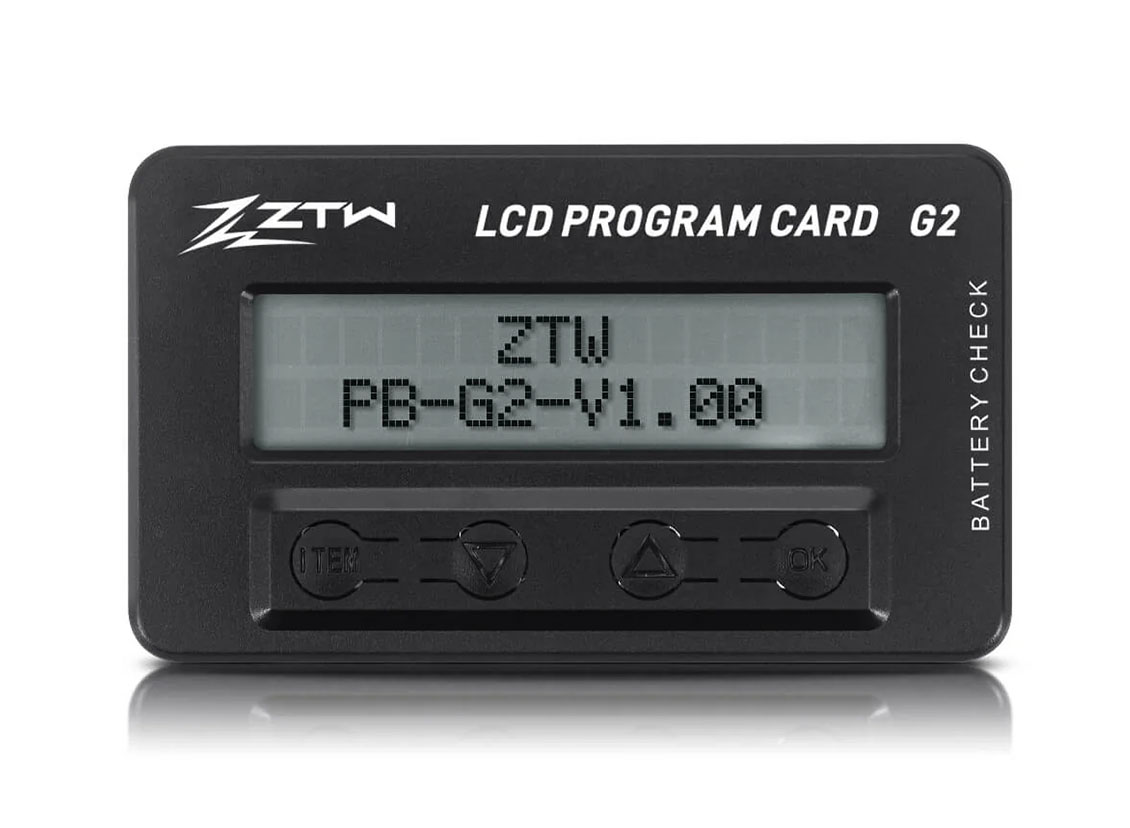

The LCD Program card G2, it is designed for ZTW G2 series ESC, and it can work with Beatles G2、Mantis G2、Mantis Slim G2、Skyhawk、Shark G2、Seal G2

Feature:
• Working as an individual device to set the parameters for the ESC.
• Working as a Lipo battery voltmeter to measure the voltage of the whole battery pack and each cell.
• For the ZTW ESC with data returning feature, it can display real-time data including: voltage, current, input throttle, output throttle, RPM, battery power, MOS temperature and motor temperature.
• For the ZTW ESC with data logging feature, it can read the data including: maximum RPM, minimum voltage, maximum current, external temperature, and maximum temperature.
• PWM throttle signal detection: Identify and display the input throttle pulse width and frequency.
• ESC/Servo Tester: It works like remote control to adjust the speed for ESC/servo by pressing the program box’s button.
• The LCD program card G2 can be upgraded by the mobile App via the ZTW bluetooth module.

Specs:
RC Parts & Accs: Speed Controllers
For Vehicle Type: Plane、Helicopter、Boat
Size: 84*49*11.5mm
Weight: 68g
Material: Composite Material
Model Number: LCD Program Card G2

Included:
1 x LCD Program Card G2

Please note: A copy of the assembly manual and the Quick Set Up Guide are available under the "Manuals/Files" tab above.
