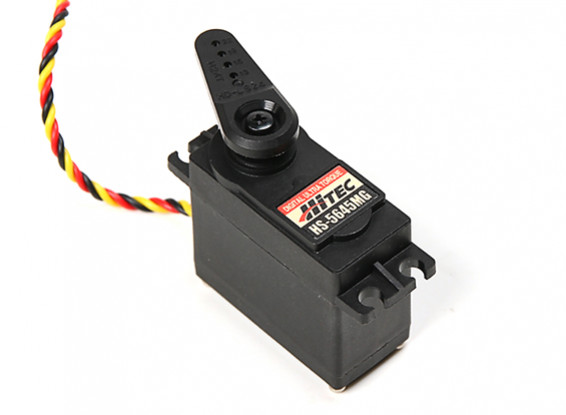

Hitec HS-5645MG Digital Ultra Torque Servo (Programmable) 12.1kg /0.18sec / 60g
Hitec HS-5645MG Digital Ultra Torque Servo (Programmable) 12.1kg /0.18sec / 60g
アクセサリー
The digital version of Hitec’s popular HS-645 is the HS-5645MG, featuring a programmable digital circuit and our custom MP/metal gear train technology. Perfect for larger airplanes and heli’s, the HS-5645MG will deliver higher resolution and torque than its analog brother.
Note: Metal Horn (R-ML) Included
Features:
• Top Selling High Torque Standard Digital Servo
• Strong Three-Pole Ferrite Motor
• Metal Gear Train with MP Gear Technology
• Dual Ball Bearing-Supported Output Shaft
• Standard Programmable Digital Circuit Provides Fine Resolution and Centering
Specs:
Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.23 ~ 0.18
Maximum Torque Range kg/cm: 10.3 ~ 12.1
Current Draw at Idle: 3mA
No Load Operating Current Draw: 450mA
Stall Current Draw: 2400mA
Dead Band Width: 4µs
Dimensions: 40.6 x 19.8 x 37.8mm
Weight: 60g
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Output Shaft (type/Ømm): Standard / 24
Case Material: Plastic
Dust / Water Resistance : N/A
Connector Gauge (AWG) / Strand Count: 22 / 60
Programmable Functions:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset
Applications:
Sport Plane: 5440g – 6800g
Sailplane: 2m and up
3D Performance: 5440g – 6800g
Scale: 5440g – 6800g
Electric Helicopter: 600mm
Gas Helicopter: 50-59 Class
Cars, buggies and trucks: 1/10th
Sail Boat: =>1m & scale
Power Boat: 1/10th
-
Servo トルク（キログラム） （分0.01キロ） 12.10
-
Servo スピード（秒/ 60deg ） 0.18
-
Servo A（ MM ） 44.70
-
Servo B （ mm）と 40.80
-
Servo C （ mm）と 38.70
-
Servo D （ mm）と 19.50
-
Servo E （ mm）と 53.40
-
Servo F （ mm）と 26.80
