Turnigy 2610 EDF Outrunner 4000kv voor 55 / 64mm

Generating Links

Turnigy 2610 EDF Outrunner 4000kv voor 55 / 64mm


Prijs:

Now save bespaar US$ 0,00 US$ 0,00

US$ 12,20
Al gekocht Discontinued Product

Please continue searching for a similar product.
1 year warranty
SKU:
T26101C4000
Geen verzendkosten? Klik hier meer leren!

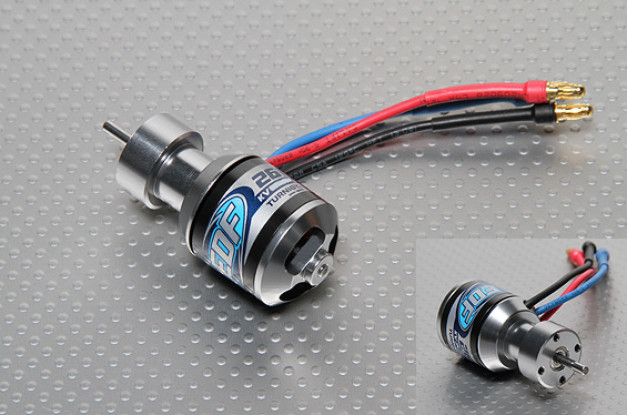

Turnigy 2610 EDF Outrunner 4000kv voor 55 / 64mm
specs:
kV 4000
Afmetingen: 47 x 26mm
Shaft: 2.3 / 3.0mm
Voltage: 11.1V
Gewicht: 54g
No-load stroom: 1.4A
No-load RPM: 44.440
Laad stroom: 22.7A
Load RPM: 34.480
Thrust: 560g
Montagegaten Bolt Circle: 18mm
Mtg. Hole Number & Grootte: 4 x M2.5

Inclusief 2 assen, 2.3 en 3.0mm
  • Kv ( tpm / v ) 4000.00
  • Max Currents (A ) 22.70
  • Resistance ( mh ) 0.00
  • Max Voltage ( V ) 11.00
  • Vermogen ( W) 0.00
  • Shaft A ( mm ) 3.00
  • Lengte B ( mm ) 47.00
  • Can Diameter C ( mm ) 26.00
  • Kan Lengte D ( mm ) 13.00
  • Totale lengte E ( mm ) 60.00
attributeset-10
Close

Dimension Diagram Guide

  • attributeset-10

Close

Upload video

Registreer u om video's te uploaden aanmelden of registreren

Onderwerpen
Sorteer op
Meest recente onderwerpen
* Bijnaam:

* Uw antwoord:


Voer de tekst in de afbeelding in het onderstaande veld in
*Verificatie code:
annuleer
Bevestig
Plaats een nieuw onderwerp
* Bijnaam:

* Uw onderwerp:



Voer de tekst in de afbeelding in het onderstaande veld in
*Verificatie code:
Onderwerp plaatsen

Registreer u om beoordelingen te schrijven aanmelden of registreren

othmar | Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Jan 31, 2015

I used it with teh EDF 7 Blade 51 mm. The EDF needs some adjusments. The combo itself is "roaring".

Napstr | Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Sep 11, 2012

Nicely finished and leightweight motor - kv is accurate and motor is very light but powerful - great for those edf models

| Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Dec 19, 2010

This motor coupled with the HK 64mm EDF is perfect!

BEAflyer | Geverifieerde koper

  • Overall
  • Quality
  • Value

Customer Rated

Dec 08, 2010

Type your review here.
I use this in a pusher configuration with a 4-3 prop and 3 cell in a VQ Delta Rocket plane. It goes straight up it so must be over 150 watts WOT.

The motor does not get hot. Its is hanging out in the airstream. I used a Rhino 1350 30C. The prop speed is almost 100mph. The plane seems to fly about 80.

This is a pretty powerful motor for its size, and swings the 4-3 with ease on 3 cells.

Goofa | Geverifieerde koper

  • Overall
  • Quality
  • Value

Customer Rated

May 19, 2010

Don't get caught with the mounting of these units,the one I received has 2.5 mounting holes, very fustrating, This is a size I find hard to get,HK QA is pathetic.!

Derku | Geverifieerde koper

  • Overall
  • Quality
  • Value

Customer Rated

May 12, 2010

Combined with blue EDF 64mm sold here gives:



21.5 amps 515g with 2200 3s1p20c battery.



Ran it WOT 30 seconds static on a 22 degree celcius day and it was warm to touch after turning it off for 10 seconds. Not bad at all - also motor weighs 53g and combined with the EDF set is about 77 - 82g depending on your impeller.

red_81 | Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Apr 27, 2010

I use this motor in my boat. Cooling solution is a must. Very good.

| Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Apr 17, 2010

light fast and very strong edf works well on 6 and 7 blade

| Geverifieerde koper

  • Overall
  • Quality
  • Value

Certified Buyer Rated

Mar 10, 2010

windings look nice and tight and have epoxy to keep them in place.will test in fan later
