9iMOD DSC55MG-180 HV (8.4V) Waterproof 180° MG Digital Coreless Car/Truck Servo 55kg/0.10sec/78g
9iMOD DSC55MG-180 HV (8.4V) Waterproof 180° MG Digital Coreless Car/Truck Servo 55kg/0.10sec/78g
Awesome!
The 9iMOD DSC55MG-180 digital high torque metal geared servo is a quality and reliable car/truck servo at an affordable price. The servo is waterproof to IP67 standards, and it also includes an aluminum center for heat dissipation, a high-precision magnetic encoder sensor, and a coreless motor. This dual ball-raced servo is very powerful and fast, it will give you an amazing torque of 55kg, and a speed of 0.09sec/60° when using a 7.4V power supply. Unlike most other servos with a travel of around 160°, this servo can travel up to an amazing 180° which makes it even more versatile for loads of uses other than cars including boats, robotics, etc.
The servo is supplied with mounting screws, ferrules, rubber grommets, servo horn machine screws, and 2 heavy-duty metal servo horns. The servo lead is fitted with a universal JR "S" type servo connector which is physically and electrically compatible with all major receiver brands sold worldwide. This precision servo is a must for RC cars, buggies, crawlers, boats, and any application where you want speed and power.
Features:
• A high torque, high speed, digital HV servo
• Has an amazing 180° of travel
• Strong metal stainless steel gearing
• Twin ball-raced output shaft
• Includes a high-precision magnetic encoder sensor and a coreless motor for incredible accuracy
• Waterproof to IP67 standards
Specs:
Type: 9iMOD DSC55MG-180 HV (8.4V) Waterproof 180° MG Digital Coreless Car/Truck Servo
Input Voltage: 6.0~8.4V
Servo Travel: 180°
Output Torque @ 6.0V: 43kg/cm
Output Torque @ 7.4V: 55kg/cm
Output Torque @ 8.4V: 58kg/cm
Transit Speed @ 6.0V: 0.13sec/60°
Transit Speed @ 7.4V: 0.10sec/60°
Transit Speed @ 8.4V: 0.08sec/60°
Idle Current: 300mA@6.0V/325mA@7.4V/350mA@8.4V
Amplifier: Digital
Gear Train: Metal
Output Spline: 25T
Bearings: Twin bearings on output shaft
Motor: Coreless
Servo Lead Length: 300mm (22AWG)
Servo Connector: Universal JR "S" type
Dead Band Width: 1 usec
Dimensions: 40x20x40.5mm
Weight: 78g

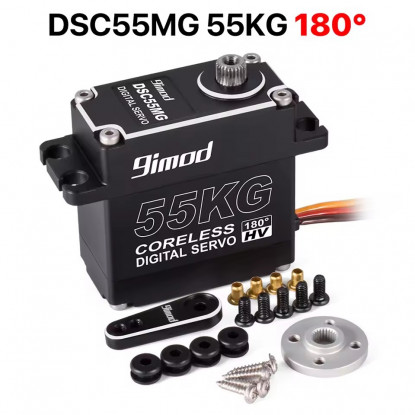

Included:
1 x 9iMOD DSC55MG-180 HV (8.4V) Waterproof 180° MG Digital Coreless Car/Truck Servo 55kg/0.10sec/78g
1 x Single-arm metal servo horn
1 x Round metal servo disc
5 x Servo machine screw
4 x Servo mounting screws
4 x Servo mounting grommets
4 x Servo mounting ferrules
-
Servo Torque ( kg) ( min. 0,01 kg ) 55.00
-
Servo Speed ( Sec / 60deg ) 0.10
-
Servo A ( mm ) 45.30
-
Servo B (mm) 40.00
-
Servo C ( mm ) 40.50
-
Servo D ( mm ) 20.00
-
Servo E ( mm) 54.00
-
Servo F ( mm ) 26.50
