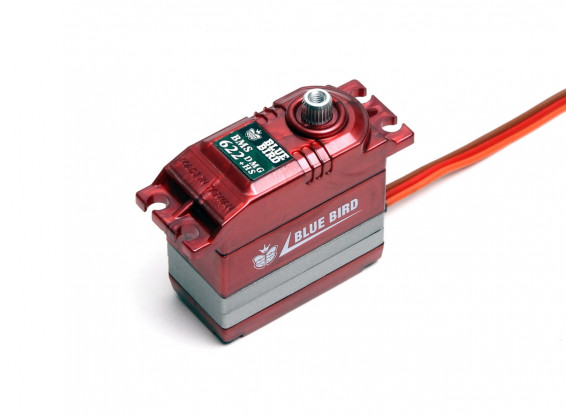

Blue Bird BMS-622DMG Standard Digital Servo w/Heatsink 10.6kg/0.13sec/59g
Blue Bird BMS-622DMG Standard Digital Servo w/Heatsink 10.6kg/0.13sec/59g
Bluebird servos are known for their quality, reliability, and excellent value for money. They are manufactured using high-quality components and materials, with meticulous attention to detail.
The BMS-622DMG digital servo is perfect for planes, helicopters, boats, vehicles (GP & EP), and robotics. Being digital, the quoted torque is not only when the servo is moving, but also the holding power when the servo arm is stationary and under load. The servo has an impressive output torque of 10.6kg and an excellent speed of 0.13 sec when using a 6V power source. The gear train has metal gears, a dual ball-raced output shaft, and also a silver anodized metal heatsink to keep the components cool when operating under extreme conditions, this prolongs the life of the servo. The BMS-622DMG is supplied with the universal "S" type connector, same as JR, etc, and a complete servo accessory pack with arms and mounting hardware.
Features:
• Digital amplifier for superior holding power
• Tough metal gear train
• Dual ball-bearing supported output shaft
• Silver-anodized metal heatsink to keep the components cool under extreme conditions
• Excellent torque and speed
• Perfect for planes, helicopters, boats, robotics, cars and buggies
• "S" type servo connector
Specs:
Type: Blue Bird BMS-622DMG Standard Digital Servo w/Heatsink
Torque @ 4.8V: 9.1kg-cm (126oz-in)
Torque @ 6.0V: 10.6kg-cm (147oz-in)
Speed @ 4.8V: 0.15sec/60°
Speed @ 6.0V: 0.13sec/60°
Dimensions: 40.5x20x42mm/1.59x0.79x1.65 inch
Weight: 59g/2.08oz
Ball-Bearing: Dual
Gear Train: Metal
Type: Digital
Motor: Brushed
Includes:
1 x Blue Bird BMS-622DMG Digital Servo w/Heatsink
2 x Output arms
4 x Rubber grommets
4 x Brass ferrules
4 x Mounting screws
1 x Servo arm retaining screw
-
Servo Torque ( kg) ( min. 0,01 kg ) 10.60
-
Servo Speed ( Sec / 60deg ) 0.13
-
Servo A ( mm ) 47.00
-
Servo B (mm) 40.50
-
Servo C ( mm ) 42.50
-
Servo D ( mm ) 20.00
-
Servo E ( mm) 52.00
-
Servo F ( mm ) 31.40
