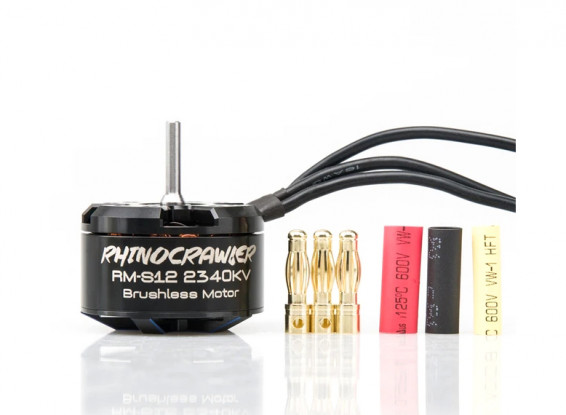

The Rhino RM-S12 BLDC series of brushless motors have been designed specifically for competitive 1/10, and 1/12 RC rock crawlers due to having higher controllability and starting torque. They have a hollow stainless steel shaft, and a 14-pole, 12-slot high-torque stator, currently one of the smallest stators on the market today (only 28x12mm). This in conjunction with the specially customized dual tile super strong magnetic design makes them a light, efficient, and extremely powerful crawler motor.
The front and rear parts of the motor are CNC machined from high grade 7075 aluminum, the motor windings are high purity copper, and for durability and lower resistance, sealed high-quality, high-precision bearings are used throughout. Installing the RM-S12 to a range of different crawlers is also not a problem, there are multiple M3 tapped threads in the end bell to suit all sorts of vehicle motor mounting.
To bring the best out of this motor and to give you the ultimate driving experience with your crawler, we recommend that you match it will the feature-filled Rhino VE40A electronic speed controller (see related products).
Features:
• Higher controllability and starting torque make it perfect for 1/10~1/12 rock crawlers
• Has one of the smallest stators on the market today, only 28x12mm
• Super strong customized dual tile magnets
• Lightweight hollow stainless-steel shaft
• Sealed high-precision, high-speed bearings for durability and lower resistance
• Multiple M3 tapped threads in the end bell to suit various motor mounts.
Specs:
Type: DYS Rhino RM-S12 2340KV High Torque BLDC Brushless Motor
Suits: 1/10~1/12 RC rock crawlers
KV Rating: 2340KV
Stator: 14 pole 12 slot
Stator Dimensions: 28x12mm
Input Voltage: 2~4S LiPo (7.4~14.4V)
Outside Diameter: 35mm
Length: 24mm
Shaft Diameter: 3.175mm
Mounting Holes C/L: 25mm
Mounting Threads: M3
Input Wires: 16AWG silicone
Weight: 84g inc wires
Includes:
1 x DYS Rhino RM-S20 2340KV High Torque BLDC Brushless Motor for 1/10~1/12 RC Rock Crawlers
1 x Set 4mm gold bullet connectors
-
Kv ( rpm / v ) 2340.00
-
Max Tensão ( V) 14.40
-
Shaft A ( mm) 3.18
-
Diâmetro C ( mm ) 35.00
-
Pode Comprimento D (mm) 24.00
