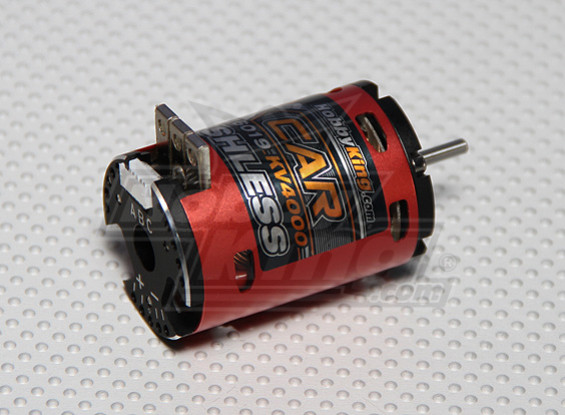

HobbyKing X-Car 8.5 Ligue Sensored Brushless Motor (4000Kv)

HobbyKing X-Car 8.5 Ligue Sensored Brushless Motor (4000Kv)

Shipped From:
  • USA
  • International (Hong Kong)
Discontinued Product

Please continue searching for a similar product.
SKU:
S2030-6001
WANT FREE SHIPPING? Click here to find out more!

Os HobbyKing X-Car Sensored Brushless Motors oferecem excelente desempenho a um preço incrível. Apresentando um anodizado qualidade CNC terminar estes motores olhar tão bom como eles vão! O timing ajustável permite afinar o desempenho de seu passeio, enquanto o sensor garante tups estrela suaves e aceleração. Os motores HobbyKing X-Car sem escova fazer uma grande atualização para 1 / 10th curso curto caminhões, carrinhos ou carros de turismo ou qualquer outra coisa que usa 540 motores de tamanho.

especificações:
Pode Tamanho: 540
Acontece: 8,5
RPM / v: 4000kv
Sensored: Sim (Standard 6 pinos arnês)
Pólo: 2
Tensão máxima: 7,4 ~ 11.1v (2S / 3S)
Max atual: 32A
Max Watts: 500w
Resistência: 0.0142ohm
Sem carga atual: 1.3Amp
Tamanho do eixo: 3,175 milímetro
Peso: 163 g

  • SKU S2030-6001
  • Brand HobbyKing
  • Capacidade ( mAh) -
  • Peso 235.0000
  • Comprimento 144.00
  • Packaging Width 55.00
  • Altura 56.00
Upload video

Only registered users can upload video. Please, log in or register

Only registered users can write reviews. Please, sign in or sign up

Brilliant quality very fast in my turnigy td10 with a 120a hk esc. maybe the connectors would be better on the back of the unit for space and fitting cooling easier.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Brilliant quality very fast in my turnigy td10 with a 120a hk esc. maybe the connectors would be better on the back of the unit for space and fitting cooling easier.

installed this motor and my ESC went up in smoke

My speed controller was working fine before i installed the motor .Now i have the fun of talking to the support centre

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

installed this motor and my ESC went up in smoke

My speed controller was working fine before i installed the motor .Now i have the fun of talking to the support centre

excellent moteur, je l'emploi en super-motard 1/5, avec esc hobbyking 60A
vitesse de pointe lgrement infrieure aux LRP a 100 LOL!!
Troisime course avec ce moteur RAS (5 manches/jour) trs fiable

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

excellent moteur, je l'emploi en super-motard 1/5, avec esc hobbyking 60A
vitesse de pointe lgrement infrieure aux LRP a 100 LOL!!
Troisime course avec ce moteur RAS (5 manches/jour) trs fiable

I bought 2 of these to test on a touring 1:10 Himoto Nascada car (full alluminium setted). Tested with a ESC X-Car HK 45A 6pins sensored.
Wiring a multi-function speed meter (between ESC and Engine sensor) here follows my data test obtained after 30minutes strong race with a straight 22mt long (at full throttle for any lap)

Room temperature: 14C
Test time: 29.50 minutes
Power: turnigy 5000mah 40C 2S lipo Hard Case Pack
Car weight: 1.47kg (including battery)
Engine start test temperature: 22C
Engine end test temperature: 31C
Esc start test temperature: 23C
Esc end test temperature: 28C
Max accelleration: 4.9 G force
Max decelleration: 4.67 G Brake force
Fastest speed: depending from transmission gears, tyres and asphalt (87Kph with my setting)
0 to 100kph time: depending from transmission gears, tyres and asphalt (0,67s with my setting)

All datas about lap time and more others, are not important to value the quality of ESC and motor, then i didn't show them.

Consider that you can modify more of these results with right gear set of transmission and electronically by ESC programming card, anyway i can say that coupling X-Car engine (8.5t in my case) and X-Car ESC series (45A in my case), your 1:10 touring car will give you a full time satisfaction races, so i just can add "buy them and enjoy yourself, your touring/drift cars will surely thanks yo

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

I bought 2 of these to test on a touring 1:10 Himoto Nascada car (full alluminium setted). Tested with a ESC X-Car HK 45A 6pins sensored.
Wiring a multi-function speed meter (between ESC and Engine sensor) here follows my data test obtained after 30minutes strong race with a straight 22mt long (at full throttle for any lap)

Room temperature: 14C
Test time: 29.50 minutes
Power: turnigy 5000mah 40C 2S lipo Hard Case Pack
Car weight: 1.47kg (including battery)
Engine start test temperature: 22C
Engine end test temperature: 31C
Esc start test temperature: 23C
Esc end test temperature: 28C
Max accelleration: 4.9 G force
Max decelleration: 4.67 G Brake force
Fastest speed: depending from transmission gears, tyres and asphalt (87Kph with my setting)
0 to 100kph time: depending from transmission gears, tyres and asphalt (0,67s with my setting)

All datas about lap time and more others, are not important to value the quality of ESC and motor, then i didn't show them.

Consider that you can modify more of these results with right gear set of transmission and electronically by ESC programming card, anyway i can say that coupling X-Car engine (8.5t in my case) and X-Car ESC series (45A in my case), your 1:10 touring car will give you a full time satisfaction races, so i just can add "buy them and enjoy yourself, your touring/drift cars will surely thanks yo

Bought this motor for my Tamiya M04-M. Running it witha a 45A Esc, 2S and 21t gear instead of the original 17t, for highspeed runs.
No heatproblems at all, although the high gearing. Will get back here after some speedmeasuring. I hope I can get a good quality video too.

Great motor, great value.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Bought this motor for my Tamiya M04-M. Running it witha a 45A Esc, 2S and 21t gear instead of the original 17t, for highspeed runs.
No heatproblems at all, although the high gearing. Will get back here after some speedmeasuring. I hope I can get a good quality video too.

Great motor, great value.

Great motor! Ordered it with the HK 80a ESC for my 2WD Arrma Mojave - and wow, it moves! Actually too powerful. I need to lower the timing on it, and get better rear tires to make it stick to the track better! Great performance, and i've run it for two weeks now... no issues!

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Great motor! Ordered it with the HK 80a ESC for my 2WD Arrma Mojave - and wow, it moves! Actually too powerful. I need to lower the timing on it, and get better rear tires to make it stick to the track better! Great performance, and i've run it for two weeks now... no issues!

Have a Xray T3 2010, spur 78. Esc 45A HK 2S and 6600mah nano tech. Drive on a fast outside track. Started off with 25 teeth, hand warm almost cold. Currently driving 31 teeth and meassure 46 degree C. This motor cant get enough!! Super quick and just order a 34 teeth pinion. Driving 12 packs so far. Very happy with this motor.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Have a Xray T3 2010, spur 78. Esc 45A HK 2S and 6600mah nano tech. Drive on a fast outside track. Started off with 25 teeth, hand warm almost cold. Currently driving 31 teeth and meassure 46 degree C. This motor cant get enough!! Super quick and just order a 34 teeth pinion. Driving 12 packs so far. Very happy with this motor.

Bought 2 for 2 drift cars. Running both with the X-Car 60 amp ESC. Both cars run great with this combo. One is a belt drive and the other is a shaft drive and they both have crazy power now. Excellent motor. Highly recommended.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Bought 2 for 2 drift cars. Running both with the X-Car 60 amp ESC. Both cars run great with this combo. One is a belt drive and the other is a shaft drive and they both have crazy power now. Excellent motor. Highly recommended.

Great motor for medium performance but even if not altering the timing, just unscrew the case bolts anyway and add some medium strenght threadlock

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Great motor for medium performance but even if not altering the timing, just unscrew the case bolts anyway and add some medium strenght threadlock

Motore magnifico e mostruoso! usato su un auto RC 1/10 Touring, ho dovuto abbassare al minimo la potenza motore. Peccato che per una pietra fra corona e pignone si spezzato l'albero porta pignone:(...ne comprer uno identico!!
Qualit do 4, perch le viti erano lente, ma in complesso Ottimo.

verified_user Quality:
trending_up Value:
playlist_add_check Overall:

Motore magnifico e mostruoso! usato su un auto RC 1/10 Touring, ho dovuto abbassare al minimo la potenza motore. Peccato che per una pietra fra corona e pignone si spezzato l'albero porta pignone:(...ne comprer uno identico!!
Qualit do 4, perch le viti erano lente, ma in complesso Ottimo.
