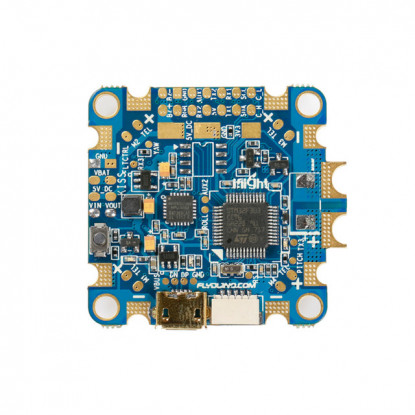

Kiss iFlight Flyduino AIO Flight Controller F3 w/5V 2A BEC / OSD / PDB
Kiss iFlight Flyduino AIO Flight Controller F3 w/5V 2A BEC / OSD / PDB
The Kiss iFlight Flyduino AIO Flight Controller (FC) is a new collaboration between iFlight and Flyduino to provide a fast F3 controller providing super smooth and stable flights. It comes complete with integrated On Screen Display (OSD) and Power Distribution Board (PDB) to provide everything in one complete package.
The KISS FC is designed to make it simple and has a new KISS firmware (Keep It Super Simple philosophy) to take the complication out of setting up your drone. It takes all the unnecessary extras and clutter so the FW is a new beast from the ground up. It sports a whole new PID controller and has a super simple GUI with only one page for setup. What could be easier?
Get into the air now with this easy to use, stable KISS AIO Flight Controller.
Features:
• First cooperative product of iFlight and Flyduino
• Integrated OSD (On Screen Display)
• Integrated PDB (Power Distribution Board)
• Compatible with Kiss and Betaflight
• Supported RX types: Sum. Signal - Spektrum Sat. (Serial / DSM2 & DSMX)
Futaba / Taranis SBUS - Jeti ExBus - Graupner SumD / SumO - Multiplex - classic RX - PWM
Specs:
Processor: STM32F303CCT6
Gyro: MPU6050
OSD: Supported
Dimensions: 36.6x36.6mm
Mounting Holes: 30.5x30.5mm pattern, with 3.2mm holes (widely compatible)
Input Voltage: 10-24V (Suggested 3-6S)
Max Current of PDB: 4x50A (200A)
BEC: 5V 2A
Weight: 7.8g
Contents:
Kiss iFlight AIO flight controller
Battery cable
USB/OSD module (to tune ESC and OSD)
Cables
Registre-se para enviar vídeos, por favor assinar em ou registar
Registre-se para escrever comentários, por favor assinar em ou registar
PJ Kim | Comprador Verificado
-
Overall
-
Quality
-
Value
Good Enough to be called Kiss FC
Nov 06, 2019
