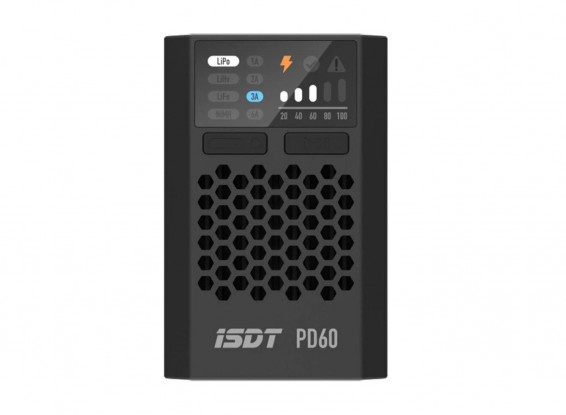

ISDT PD60 1~4S 60W USB-C Input Smart Charger
ISDT PD60 1~4S 60W USB-C Input Smart Charger
Acessórios
ISDT is renowned for its ergonomically designed, small, state-of-the-art battery chargers and accessories. The PD60 Smart charger continues this great pedigree of efficient and user-friendly chargers.
The ISDT PD60 is a simple, easy-to-use smart charger that runs off the USB outlet of your PC, or from a standard USB power source. It is small, lightweight, and very convenient to have in travel baggage etc, as a source to charge up batteries whilst on the move and in everyday life. Through this same USB-C connection the firmware can be updated to ensure you have the latest firmware for optimized performance.
The design incorporates an aluminum heatsink with a honeycombed vent with hidden air intake to silently remove the heat by natural convection. The ISDT PD60 is a compact, innovative, user-friendly charging unit that is very easy and to use.
Features:
• Lightweight and very compact
• Incorporates an aluminum heatsink for natural convection cooling
• Simple to use, only 2 buttons for setting the charging process
• Ideal for use when traveling or in everyday life
• Abnormal battery alarm
• Incorrect battery setting alarm
• XT60 output connector
Specs:
Model: ISDT PD60 1~4S 60W USB-C Smart Charger
Input Voltage: 5~20V DC
Max Input Current: 3A
Output Voltage: 1~20V
Charging Power: 60W
Charging Current: 1/2/3/6A
Balance Current: 0.5A max per cell
Battery Types: 1~4S LiPo/LiFe/LiHv, 1~12S NiMh/NiCd
DC Input Connector: USB-C
Charging Output Connector: XT60
Balance Connector: XH-JST
Update Connector: USB-C
Abnormal Voltage Alarm: Yes
Incorrect Setting Alarm: Yes
Dimensions: 85x56x21mm
Weight: 87g
Note: A copy of the user manual is available under the "Files" tab.
