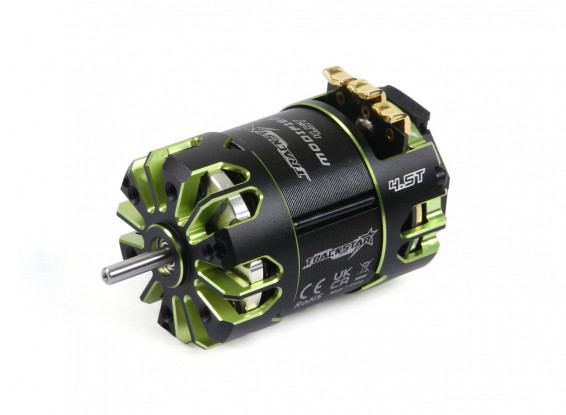

Turnigy TrackStar Modified 540 4.5T (1~2S) 1/10th Scale Sensored Brushless Motor
Turnigy TrackStar Modified 540 4.5T (1~2S) 1/10th Scale Sensored Brushless Motor
Acessórios
Special Price 17,03 US$
You save 5,67 US$
Was 22,70 US$
Special Price 14,99 US$
You save 8,38 US$
Was 23,37 US$
Special Price 13,99 US$
You save 9,00 US$
Was 22,99 US$
Special Price 12,49 US$
You save 9,13 US$
Was 21,62 US$
Special Price 15,42 US$
You save 6,84 US$
Was 22,26 US$
Special Price 166,85 US$
You save 18,54 US$
Was 185,39 US$
Special Price 25,02 US$
You save 2,78 US$
Was 27,80 US$
The Turnigy TrackStar modified 540 brushless motors offer outstanding performance at an incredible price! The unique stator design provides strong torque and a high RPM. Their CNC-machined 7075 aluminum case and titanium-magnesium alloy heat sink dissipate heat extremely well, allowing them to run at very low temperatures.
The stator is electro-plated to prevent tarnishing and rusting, and the American standard high-purity copper windings provide maximum conductivity.
They also feature adjustable timing, which can be adjusted in both directions for CW and CCW rotation. This allows for fine-tuning the performance of your vehicle while the dual sensor ensures smooth start-ups and acceleration. They are also fitted with original NSK R2ZZ Japanese bearings which ensure very smooth and vibration-free running at speeds up to 80,000rpm.
The TrackStar modified 540 1/10th brushless motors are suitable for 1/0th scale on-road, and off-road cars, trucks, and buggies. These motors also comply with ROAR, IFMAR, BRCA, and EFRA specifications.
Features:
• Sensor-based for excellent torque and smoothness even at slow speeds
• Adjustable timing for fine-tuning and CW or CCW rotation
• CNC machined 7075 aluminum motor case and titanium-magnesium alloy heat sink for excellent heat dissipation
• American standard high-purity copper windings for maximum conductivity
• Fitted with original NSK R2ZZ Japanese bearings for smooth and vibration-free running
• Removable/replaceable rotor
• Electro-plated stator to prevent tarnishing and rusting
Specs:
Type: Turnigy TrackStar Modified 540 Sensored Brushless Motor
Scale: 1/10th (modified class)
Poles: 2
Turns: 4.5
KV: 7800KV
Sensored: Yes (Standard 6-pin lead)
Sensor Lead: Included
Input Voltage: 3.7~7.4V (1~2S)
Max Current: 108A
Max Watts: 490
Resistance: 0.0029 ODM
Motor Diameter: 35.8mm
Motor Length: 52mm
Shaft Diameter: 3.175mm
Shaft Length: 13.9mm
Mounting Screw Threads: 6 x M3
Mounting Screw Centers: 25.2mm
Weight: 165g
Included:
1 x Turnigy TrackStar Modified 540 4.5T (1~2S) 1/10th Scale Sensored Brushless Motor
1 x Sensor Lead
Please note: A copy of the user manual is available under the "Manuals/Files" tab above.
-
Kv ( rpm / v ) 7800.00
-
Correntes Max (A) 108.00
-
Resistência (MH ) 0.00
-
Max Tensão ( V) 7.40
-
Potência (W) 490.00
-
Shaft A ( mm) 3.18
-
Comprimento B (mm) 52.00
-
Diâmetro C ( mm ) 35.80
-
Pode Comprimento D (mm) 48.60
-
Comprimento Total E ( mm) 65.90
