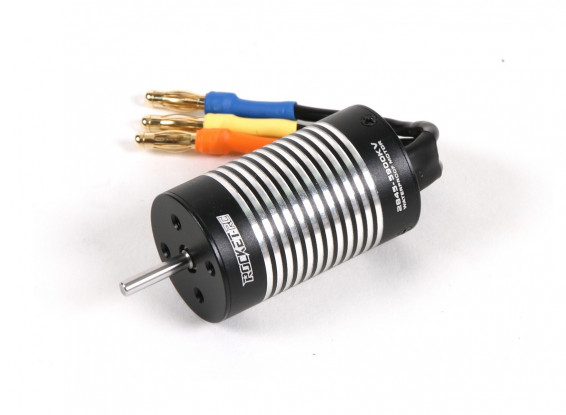

Rocket Surpass KK2845-5900KV 1/12~14th Scale Waterproof Car/Truck Sensorless Brushless Motor

Rocket Surpass KK2845-5900KV 1/12~14th Scale Waterproof Car/Truck Sensorless Brushless Motor
Поделиться ссылкой
Аксессуары
The Rocket Surpass range of brushless motors is precision-made using the latest manufacturing processes. The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum, high-purity copper is used for the windings for improved efficiency, and oversized ABEC5 high-speed bearings are used for durability. The stator has super thin (0.35mm) laminations, and the rotor is then precision balanced for reliability and ultra-smooth running at maximum RPMs.
The Rocket Surpass KK2845-5900KV motor has been specially built for 1/12~14th size RC cars and trucks and is totally waterproof for use in extreme conditions. This powerful 4-pole, 12-slot motor features a universal mounting system so that it will fit just about all 1/12~14th scale vehicles.
Features:
• The heatsink can is CNC machined from a solid billet of 6061 T6 aluminum
• High-purity copper is used for the windings for improved efficiency
• Each motor includes oversized ABEC5 high RPM bearings for durability
• The stator has super thin (0.35mm) laminations
• Rotor is precision balanced for reliability, and ultra-smooth running
• Totally waterproof for use in extreme conditions
• Universal mounting system to suit most 1/12~14th scale vehicles
Specs:
Type: Rocket Surpass KK2845-5900KV 1/12~14th Scale Waterproof Car/Truck Sensorless Brushless Motor
Max Voltage: 9V
RPM/V: 5900KV
Poles: 4 (12-slot)
Max Loading: 88A
Max Power: 800W
Max RPM: 50,000
Resistance: 0.0104
Motor Diameter: 28mm
Length of Can: 47mm
Shaft Diameter: 3.175mm
Length of Shaft: 15mm
Weight: 125g
Mounting Hole Thread: M3
Mounting Hole Spacings: 16mm/19mm
Motor Connectors: 3.5mm gold
-
Kv ( об / об) 5900.00
-
Max Токи (A) 88.00
-
Сопротивление ( тк ) 0.01
-
Максимальное напряжение (В ) 9.00
-
Мощность (Вт ) 800.00
-
Вал А ( мм) 3.18
-
Длина В ( мм ) 47.00
-
Диаметр С ( мм ) 28.00
-
Общая длина E (мм ) 62.00
