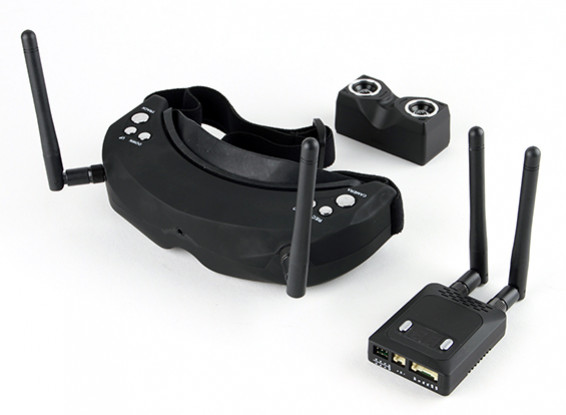

Skyzone 3D 5.8GHz FPV Goggles With 32CH Receiver And Head-Tracking (V2)

The latest version of Skyzones 5.8GHz 3D FPV goggles have arrived with 2 additional new features that will definitely excite the FPV aficionado!

The latest offering now includes interpupillary distance adjustment (IPD) which is critical in the the design of FPV viewing systems to ensure the best possible focus. A video recording option has also been added which means you no longer require a second camera or run the risk of loosing your flight footage in the event that your recordable FPV camera is damaged.

As per the original version, the goggles have a front mounted camera which allows you to perform other tasks without removing the goggles. The High resolution widescreen matched with a 30 degree field of view puts you in the cockpit, the new included 3D camera and matched special 600mW VTX works with the dual receivers built in to the goggles to give you a true seamless 3D FPV experience.  Blend that with the state of the art auto centering head-tracker and you have true immersion like you have never seen.

Skyzone has matched their beautiful FPV view with reliability and adjustability, from the built in 32 channel dual diversity 5.8GHz receiver to the IPD and Diopter adjustments. The goggles have full A/V ins and outs and now a built in DVR with playback. Heck, you can even watch a movie with them! The goggles have a front mounted camera, with a quick push of a button your view switches allowing you to perform all kinds of tasks without the need to lift the goggles. The goggles also feature light tight comfortable eyecups and an earphone jack with volume control.

The quality and features of the new Skyzone FPV Goggles have definitely raised the bar, so if you’re ready for some seat of your pants true 3D flying from the cockpit view, look at these Skyzone goggles.

Features:
• 3D!!!
• Complete plug and play kit
• 2D diversity mode
• DVR built in with playback
• Built-in 32CH 5.8G diversity that is compatible with most FPV 5.8G Tx's on the market (Fatshark,DJI,Walkra,Boscam etc)
• Built-in self-calibrating head tracking (gyro, inertial and compass)
• Built in Dual 854X480(WVGA) Monitors,  1,229,760 color sub-pixels
• Built-in external camera for surrounding view (640X480)
• AV in/ AV out/ Earphone socket (with volume control)
• Adjustable Interpupillary and Diopter for your eyes
• Adjustable brightness and contrast

Specs:
FOV: 30 degrees
Resolution: 854x480 (WVGA) 1230k
Interpupillary (IPD) distance: 60-68mm adjustable, Diopter with optional lenses
Channels: 32CH 4band 5.8GHz (Fatshark, Boscam & Skyzone compatible)
Receiver: Dual ISM 32ch Diversity receiver -90dbm Sensitivity
Video format: NTSC/PAL
Antenna connector: 2x SMA 50 ohm
Video in/out: 1.0VP/75 ohm
Audio in/out: 1.0VP/10k ohm
Front internal camera: 120 degree 640x480
head tracker: Compass/ Inertial and gyro ppm selectable channel output
A/V port: 3.5mm
Ear Out: 3.5mm with volume control
power Supply: dc7-28v / 1A
Power consumption: 4.3w

3D Camera Specs:
FOV: 85 degrees (Diagonal)
F/NO: 3.0
Resolution: 720X576
Video Standard: PAL
Video output level: 1.0Vp-p Typ. / 75ohm
Audio output level: 2.0Vp-p Typ. / 10Kohm
Power supply: DC 5.0V/ 0.5A
Power Consumption: 1.6W
