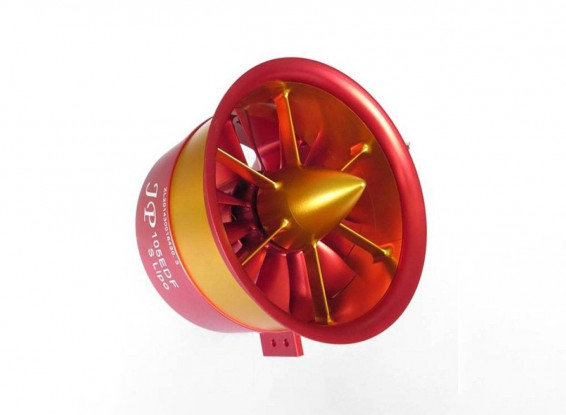

JP Hobby 105mm 12S All-Metal 12-Blade EDF Fan Unit w/4250-875KV Brushless Motor

This high-quality all-metal fan unit uses the latest technology and high-grade aluminum alloy to ensure a powerful, smooth-running unit. It is built to the highest of standards, and each blade is precision made to generate the best airflow, and to a rigorous 8-hour fatigue test before installation.

The highly rigid structure is capable of running at a very high RPM which produces an extremely high efflux velocity for maximum speed and efficiency. The design includes an anti-disintegrating safety feature that will stop a blade from flying out of the shroud in the unlikely case of failure. The shroud itself acts as a heatsink for the motor and each unit has been dynamically balanced to ensure smooth running and a long lifespan for both the fan unit and the motor.

With a thrust of up to 7.5kg, the JP 105mm all-metal 12-blade EDF fan is the perfect power unit for the HobbyKing Sports Hawk, it is a marriage made in heaven. It will supply an amazing amount of power and thrust very smoothly and with an amazing jet-like sound, to push the Sports Hawk around the sky in a true jet-like style.

Features:
• All-metal high-grade aluminum alloy construction
• Supplied with a powerful 4250-875KV brushless motor
• Each blade has to undergo a rigorous 8hr fatigue test
• Includes an anti-disintegrating safety feature in the unlikely event of a failure
• Provides a thrust of up to 7.5kg on a 12S LiHV pack
• 12-blade fan has been dynamically balanced to ensure smooth running and a long lifespan

Specs:
Type: JP Hobby 105mm 12S All-Metal EDF Fan Unit w/motor
Construction: All-metal high-grade aluminium alloy
Motor: MT 4250-875KV 12-pole brushless outrunner w/6mm shaft
Rotor: 12-blade
Rotor Diameter: 105mm
Outside Diameter: 107mm
Length: 80mm
Inlet Ring Diameter: 123mm (removable)
Ejection Diameter: 105mm
Max Thrust: 7.5kg
Efficiency: 90%
Weight: 550g (w/motor)
Recommended ESC: 160A
Recommended Speed Controller Timing: 15° or less

Measurements:
Thrust: 6.5kg (44.4V)/7.5kg (48V)
Current: 114A (44.4V)/130A (48V)
Power: 4528W (44.4V)/5280W (48V)
